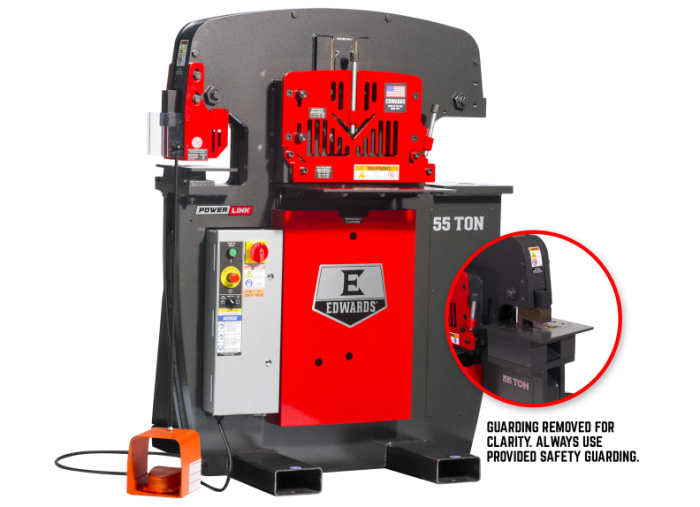

Edwards Ironworker 55 Ton Ironworker 3 Phase 230 Volt PowerLink Coper Notcher ED9-55233512

Features

• Adjustable electric stoke control
• ANSI B11.5-1988(02) Compliant Guarding
• Bright LED lights increases visibility
• Durable, heavy-duty Made in USA steel construction
• Electric foot pedal with integrated jog control
• ETL Certified Controls
• Integrated Lock-out/Tag-out system with multiple location E-Stop (foot pedal & control panel) for added safety
• Optimized workstation heights for improved efficiency
• Punches are easily changeable, long-lasting and available from 1/8" to 4" diameters along with square, oblong, hex, metric, and custom shapes
• Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life

Specifications

• Stock Number: ED9-55233512
• Amps: 14
• Angle Shear Max Capacity 1/4": 4 x 4
• Angle Shear Max Capacity 3/8": 3 x 3
• Angle Shear Work Height (In.): 39-7/8
• Cylinder (In): 2-1/2" Ram
• Flat Bar Shear Max Capacity 1": 12
• Flat Bar Shear Max Capacity 3/4": 4
• Flat Bar Shear Max Capacity (In.): 3/8 x 14, 1/2 x 12, 3/4 x 4
• Flat Bar Shear Max Round Capacity (In.): 7/8
• Flat Bar Shear Max Round (In): 7/8
• Flat Bar Shear Max Square Capacity (In.): 7/8
• Flat Bar Shear Max Square (In): 7/8
• Flat Bar Shear Work Height (In.): 34-1/2
• Hydraulic Reservoir (Gal.): 7
• Hydraulics (GPM): 3-1/2
• Hydraulics (PSI): 2500
• Model Number: 55233512
• Motor (HP): 7.5 HP 3 ~ 230V
• Motor Speed (RPM): 1725
• Open Station Open Height (In): 8-1/8
• Open Station Shut Height (In): 6-7/8
• Open Station Stroke (In): 1-1/4
• Open Station Throat Depth (In): 11-3/16
• Open Station Work Height (In): 34-1/2
• Open Workstation Throat Depth (In.): 11-3/16
• Open Workstation Work Height (In.): 34-1/2
• Opt. Coper Notcher Max Capacity (In.): 2-1/2 x 4 x 5/16
• Opt. Coper Notcher Work Height (In.): 39-1/2
• Product Dimensions (In.): 44-3/8 x 36-1/8 x 55-1/4
• Prop 65: Cancer and Reproductive Harm
• Punch Max Capacity (In.): 1-16 diam. In 5/8 mild steel
• Punch Open Height (In): 8-1/8
• Punch Rating (Tons): 55
• Punch Shut Height (In): 6-7/8
• Punch Stroke (In.): 1-1/4
• Punch Throat Depth (In.): 7-1/2
• Punch Work Height (In.): 36-9/16
• Rating (Tons): 55
• Reservoir (Gal.): 7
• Shipping Dimensions (L x W x H) (In.): 45 x 51 x 62
• Valve Pressure (PSI): 2750
• Warranty: 1 Year
• Gross Weight: 2480.0
• Net weight: 2430.0
