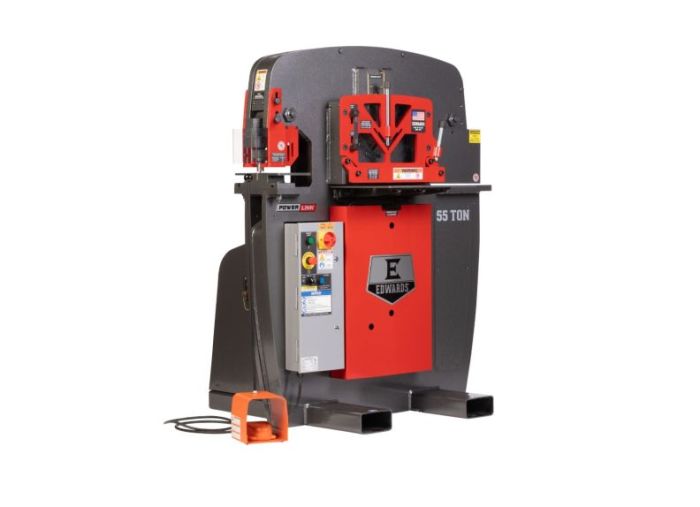

Edwards Ironworker 55 Ton Ironworker 230V 3Ph with PowerLink ED9-IW55-3P230-A

Features

• Adjustable electric stoke control
• ANSI B11.5- 1988(02) Compliant Guarding
• Integrated E-Stop, Lock-out/Tag-out
• Interchangeable Attachments available to tailor the Ironworker to your needs
• Optimized workstation heights for improved efficiency
• Optional Accessories available to increase precision and efficiency

Specifications

• Stock Number: ED9-IW55-3P230-A
• Amps: 14
• Angle Shear Max Capacity 1/4": 4 x 4
• Angle Shear Work Height (In.): 39-7/8
• Flat Bar Shear Max Capacity 1/2": 12
• Flat Bar Shear Max Capacity 3/4": 4
• Flat Bar Shear Max Capacity (In.): 3/8 x 14, 1/2 x 12, 3/4 x 4
• Flat Bar Shear Max Round (In): 7/8
• Flat Bar Shear Max Square (In): 7/8
• Flat Bar Shear Rating (Tons): 55
• Flat Bar Shear Work Height (In.): 34-1/2
• Hydraulic Pump (GPM): 3-1/2
• Hydraulics (GPM): 3-1/2
• Hydraulics (PSI): 2500
• Model Number: IW55-3P230-AC500
• Motor Amps: 14
• Motor (HP): 5 HP 3 ~ 230V
• Motor Speed (RPM): 1725
• Open Station Open Height (In): 8-1/8
• Open Station Shut Height (In): 6-7/8
• Open Station Stroke (In): 1-1/4
• Open Station Throat Depth (In): 11-3/16
• Open Station Work Height (In): 34-1/2
• Open Workstation Throat Depth (In.): 11-3/16
• Open Workstation Work Height (In.): 34-1/2
• Optional Coper Notcher Work Height (In.): 39-1/2
• Overall Dimensions (L x W x H) (In.): 36-1/8 x 44-3/8 x 55-1/4
• Product Dimensions (In.): 44-3/8 x 36-1/8 x 55-1/4
• Prop 65: Cancer and Reproductive Harm
• Punch Max Capacity (In.): 1-1/16 diam. in 5/8 mild steel
• Punch Open Height (In): 8-1/8
• Punch Rating (Tons): 55
• Punch Shut Height (In): 6-7/8
• Punch Stroke (In.): 1-1/4
• Punch Throat Depth (In.): 7-1/2
• Punch Work Height (In.): 36-9/16
• Rating (Tons): 55
• Reservoir (Gal.): 7
• Shipping Dimensions (L x W x H) (In.): 45 x 51 x 62
• Valve Pressure (PSI): 2750
• Warranty: 1 Year
• Gross Weight: 2480.0
• Net weight: 2430.0
