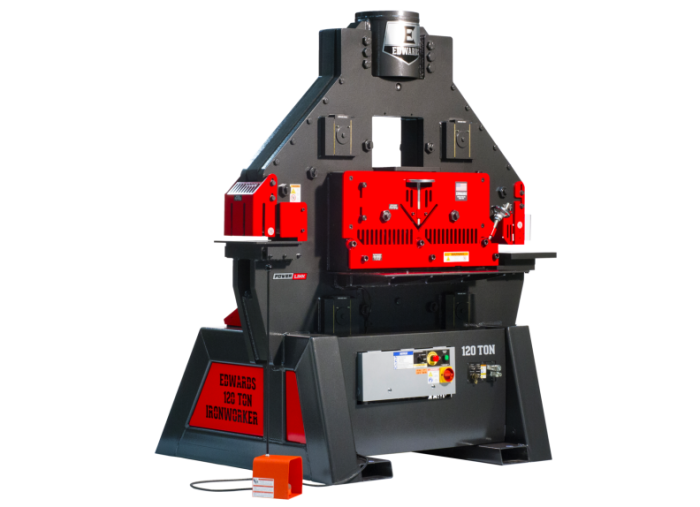

Edwards Ironworker 120 Ton Ironworker 230V 3Ph with PowerLink ED9-IW120-3P230-A
In Stock
SKU
ED9-IW120-3P230-A
$47,499.00
Our most powerful Ironworker, the 120 Ton, offers the largest capacity and most flexibility - created with heavy-duty Made in USA steel construction. This compact machine allows for fast and easy transitions between fabrication operations. The 5 Workstations include a punch, flat bar shear, angle shear, coper notcher, and Open Cavity that accepts 4 Attachments. Further customize the Ironworker to your projects with 12 additional Attachments and 15 Accessories. Other features include an electric foot pedal with integrated jog control and bright LED lights to increase visibility. The longer stroke length and increased capacity provided by this Ironworker allow it to handle the most heavy-duty projects.
Features
- Adjustable electric stoke control
- Angle Shear blades have 2 corner radii for both thin and thick material and are made of precision tool steel with 2 cutting edges for extended life
- ANSI B11.5-1988(02) Compliant Guarding
- ETL Certified Controls
- Flat Bar Shear blades are made of precision machined, high-quality tool steel with 4 cutting edges for extended life
- Integrated Lock-out/Tag-out system with multiple location E-Stop (foot pedal & control panel) for added safety
- Optimized workstation heights for improved efficiency
- PowerLinkâ„¢ System increases your capabilities turning your Ironworker into a power source for our ever expanding line of Hydraulic Tools
- Punches are easily changeable, long-lasting and available from 1/8" to 4" diameters along with square, oblong, hex, metric, and custom shapes
- Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life
Specifications
- Stock Number: ED9-IW120-3P230-A
- Amps: 26
- Angle Shear Max Capacity 1/2": 6 x 6
- Angle Shear Work Height (In.): 52-1/2
- Coper Notcher Max Capacity (In.): 3 x 6 x 1/2
- Coper Notcher Work Height (In.): 40
- Flat Bar Shear Max Capacity 1": 12
- Flat Bar Shear Max Capacity 1/2": 24
- Flat Bar Shear Max Round Capacity (In.): 1-1/4
- Flat Bar Shear Max Round (In): 1-1/4
- Flat Bar Shear Max Square (In): 1-1/4
- Flat Bar Shear Rating (Tons): 120
- Flat Bar Shear Work Height (In.): 33-1/4
- Hydraulic Pump (GPM): 24
- Hydraulic Reservoir (Gal.): 17
- Hydraulics (GPM): 24
- Hydraulics (PSI): 3800
- Model Number: IW120-3P230-AC900
- Motor Amps: 26
- Motor (HP): 10 HP 3 ~ 230V
- Motor Speed (RPM): 1770
- Overall Dimensions (L x W x H) (In.): 60 x 60 x 84
- Product Dimensions (In.): 60 x 60 x 84
- Prop 65: Cancer and Reproductive Harm
- Punch Max Capacity (In.): 1-1/2 diam. in 1 mild steel
- Punch Open Height (In): 9-1/8
- Punch Rating (Tons): 120
- Punch Shut Height (In): 7-1/8
- Punch Stroke (In.): 2
- Punch Work Height (In.): 36-5/8
- Rating (Tons): 120
- Reservoir (Gal.): 17
- Shipping Dimensions (L x W x H) (In.): 60 x 67 x 87
- Valve Pressure (PSI): 3800
- Warranty: 1 Year
- Gross Weight: 5975.0
- Net weight: 5856.0
| Brand | Edwards Ironworker |
|---|---|
| Sizes | 120 Ton |
| Warranty | 1 Year |
| Tool Type | Metal |
| Power | 3 Phase |
