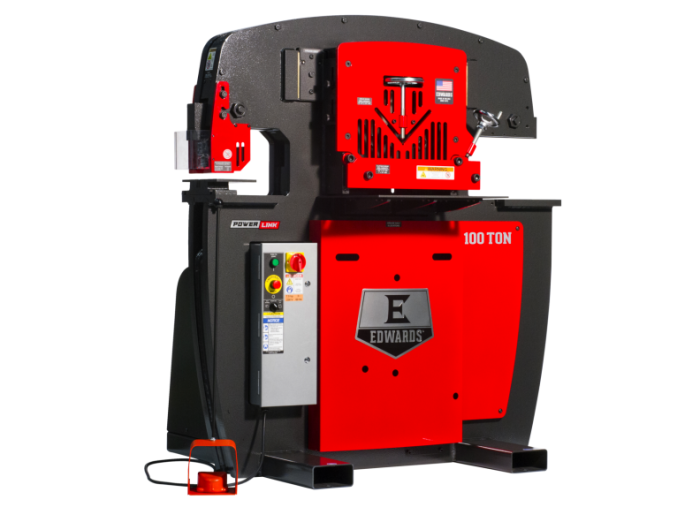

Edwards Ironworker 100 Ton Ironworker 460V 3Ph with PowerLink ED9-IW100-3P460-A
In Stock
SKU
ED9-IW100-3P460-A
$36,499.00
Our 100 Ton Ironworker provides optimal power and adaptability to handle any project with its four workstations, 13 interchangeable attachments in the open workstation, and 17 accessories to adapt the Ironworker to your needs. Ideal for larger fabrication shops or those jobs requiring heavier materials, this compact machine that allows for fast and easy transitions between fabrication operations: punch, shear, notch, bend, or cope all in one machine. The Angle Shear blades have 2 corner radii and are made of precision tool steel with 2 cutting edges, while the Flat Bar Shear blades are made of precision machined, high-quality tool steel with 4 cutting edges. The PowerLinkâ„¢ System increases your capabilities by turning your Ironworker into a power source for our line of Hydraulic Tools.
Features
- Adjustable electric stoke control
- ANSI B11.5-1988(02) Compliant Guarding
- Bright LED lights increases visibility
- Durable, heavy-duty Made in USA steel construction
- Electric foot pedal with integrated jog control
- ETL Certified Controls
- Integrated Lock-out/Tag-out system with multiple location E-Stop (foot pedal & control panel) for added safety
- Optimized workstation heights for improved efficiency
- Punches are easily changeable, long-lasting and available from 1/8" to 4" diameters along with square, oblong, hex, metric, and custom shapes
- Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life
Specifications
- Stock Number: ED9-IW100-3P460-A
- Amps: 11
- Angle Shear Max Capacity 1/2": 6 x 6
- Angle Shear Work Height (In.): 43-15/16
- Coper Notcher Max Capacity (In.): 2-1/2 x 6 x 1/2
- Coper Notcher Work Height (In.): 42
- Flat Bar Shear Max Capacity 1": 10
- Flat Bar Shear Max Capacity 3/4": 14
- Flat Bar Shear Max Capacity (In.): 3/4 x 14, 1 x 10
- Flat Bar Shear Max Round Capacity (In.): 1-1/4
- Flat Bar Shear Max Round (In): 1-1/4
- Flat Bar Shear Max Square (In): 1-1/4
- Flat Bar Shear Rating (Tons): 100
- Flat Bar Shear Work Height (In.): 37
- Hydraulic Pump (GPM): 10-1/2
- Hydraulic Reservoir (Gal.): 17
- Hydraulics (GPM): 10-1/2
- Hydraulics (PSI): 3500
- Model Number: IW100-3P460-AC600
- Motor Amps: 11
- Motor (HP): 7.5 HP 3 ~ 460V
- Motor Speed (RPM): 1765
- Open Workstation Throat Depth (In.): 14-3/4
- Open Workstation Work Height (In.): 37
- Overall Dimensions (L x W x H) (In.): 45 x 56-1/8 x 61-11/16
- Product Dimensions (In.): 56-1/8 x 45 x 61-11/16
- Prop 65: Cancer and Reproductive Harm
- Punch Max Capacity (In.): 1-1/16 diam. in 1 mild steel
- Punch Open Height (In): 8-3/4
- Punch Rating (Tons): 100
- Punch Shut Height (In): 6-15/16
- Punch Stroke (In.): 1-13/16
- Punch Work Height (In.): 39-1/16
- Rating (Tons): 100
- Reservoir (Gal.): 17
- Shipping Dimensions (L x W x H) (In.): 46 x 69 x 67
- Valve Pressure (PSI): 3500
- Warranty: 1 Year
- Gross Weight: 4650.0
- Net weight: 4557.0
| Brand | Edwards Ironworker |
|---|---|
| Sizes | 100 Ton |
| Warranty | 1 Year |
| Tool Type | Metal |
| Power | 3 Phase |
