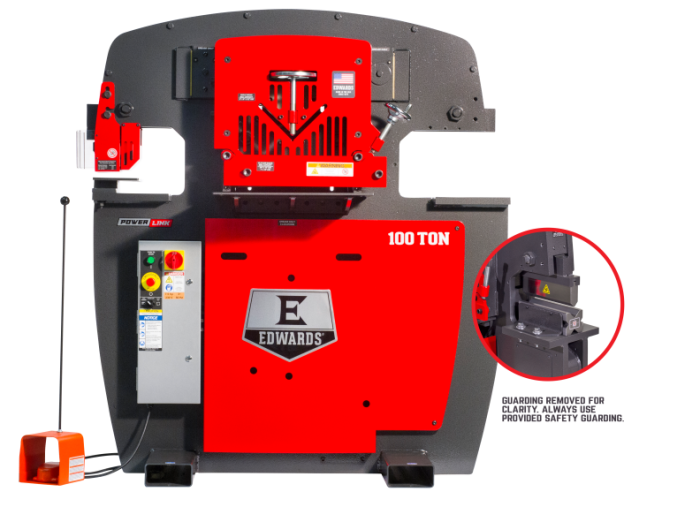

main product photo

Edwards Ironworker 100 Ton Ironworker 230V 1Ph PowerLink 10" Brake ED9-10231522

Be the first to review this product
In Stock
SKU
ED9-10231522
$37,999.00
Notify me when the price drops
ⓘ Special Order
Special Order ✕
This item is temporarily out of stock, and is expected to ship within 6–8 business days after ordering.
Add to Compare

This 100 Ton Ironworker provides optimal power and adaptability to handle any project with its 4 Workstations including a factory-installed 10" brake. Compatible with 12 interchangeable Attachments and 17 Accessories to adapt the Ironworker to your needs. Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life. Punches are easily changeable, long-lasting and available from 1/8" to 4" diameters along with square, oblong, hex, metric, and custom shapes. Includes a 10" Brake with 4-Way Die allowing 1/16", 1/8", 3/16" and 1/4" material to be formed to a 90° angle. Ideal for larger fabrication shops or those jobs requiring heavier materials.


Features

  • Adjustable electric stoke control
  • ANSI B11.5-1988(02) Compliant Guarding
  • Bright LED lights increases visibility
  • Durable, heavy-duty Made in USA steel construction
  • ETL Certified Controls
  • Flat Bar Shear blades are made of precision machined, high-quality tool steel with 4 cutting edges for extended life
  • Integrated Lock-out/Tag-out system with multiple location E-Stop (foot pedal & control panel) for added safety
  • Optimized workstation heights for improved efficiency

Specifications

  • Stock Number: ED9-10231522
  • Flat Bar Shear Max Capacity 1": 14
  • Flat Bar Shear Max Round (In): 1-1/4
  • Flat Bar Shear Max Square (In): 1-1/4
  • Flat Bar Shear Work Height (In.): 37
  • Hydraulic Pump (GPM): 10-1/2
  • Model Number: 10231522
  • Motor Amps: 22
  • Motor (HP): 7.5 hp
  • Motor Speed (RPM): 1765
  • Prop 65: None
  • Punch Max Capacity (In.): 1-1/16 dia in 1" A36"
  • Punch Open Height (In): 8-3/4
  • Punch Shut Height (In): 6-15/16
  • Punch Stroke (In.): 1-13/16
  • Punch Throat Depth (In.): 11
  • Punch Work Height (In.): 39-1/16
  • Rating (Tons): 100
  • Reservoir (Gal.): 17
  • Valve Pressure (PSI): 3500
  • Warranty: 1 Year
  • Gross Weight: 4704.0
  • Net weight: 4704.0

More Information
BrandEdwards Ironworker
Sizes100 Ton
Warranty1 Year
Tool TypeMetal
PowerSingle Phase
