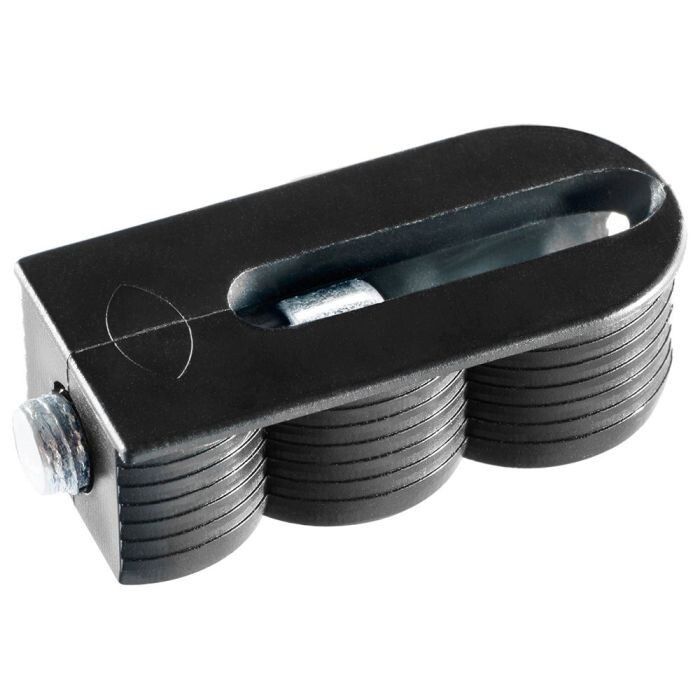

Lamello CABINEO 12 CONN SYST PL BLK 2000 186331

Cabineo is the newest connector from Lamello and is an outstanding solution for cabinet shops and manufacturers using nested-based CNC routers. The toolpath can be quickly machined with a standard straight-shank router bit without requiring a tool change. Cabineo connectors are simply tapped into the routed pocket and join cabinet components together by screwing into a matching 5 mm shelf pin hole, delivering nearly 200 pounds of clamping force.

Cabineo connectors can be concealed with matching cover caps for a clean finish, or components can be assembled in an inverted orientation for a completely invisible connection. Since Cabineo does not require a pin or stud, all components can be shipped as a true flat-pack, ready-to-assemble (RTA) solution. The M6 version features a metal helical insert or can be fastened directly into a tapped hole in metal furniture or fixture components.

More Advantages

• Ideal for installing fixed shelves or vertical dividers in an already assembled cabinet.
• Detachable design allows for easy transport or shelf adjustment.
• Shallow 10 mm connector depth is suitable for panels from 12 mm thick.
• Corner joints with Cabineo 12 (drill hole Ø 5 × 12 mm).
• Dividing panel joints with Cabineo 8 (drill hole Ø 5 × 8 mm) for material thicknesses from 16 mm.
• Can be used with or without decorative cover caps.
• Cover caps are available in multiple colors for a professional finish.
• Metal insert threaded version provides exceptionally strong connections and is ideal for wood-to-metal applications.
