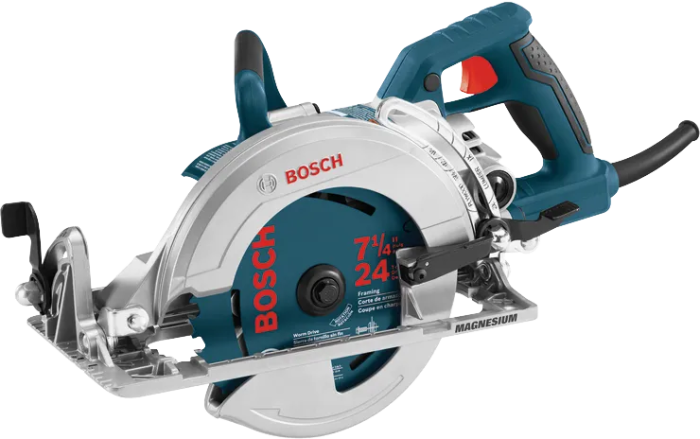

The worm drive system on the CSW41 features an enormous gearing ratio in a compact size and provides tremendous power in a manageable package. This model features sturdy magnesium housing and a die-cast magnesium footplate for true strength and a lifetime of reliable use. It also has easily serviceable brushes, large adjustment levers, a spindle lock, and a built-in saw hook for easy storage between tasks. Top it off with a soft grip handle for comfort, control, and accuracy, and this is an exceptional piece of equipment
Features:
Light weight magnesium motor housing and foot plate constructionœ lighter weight saw reduces user fatigue for less down time
Built-in saw hookœ allows convenient saw storage between cuts
Featherboard multi-function wrenchœ for blade and brush change, lever adjustments and blade diamond center knockout
Accurate depth of cut system allows for quick accurate adjustment
Left side blade design for unmatched clarity of cut line
Anti-snag lower guardœ provides smooth operation for small cut-off pieces
Soft-grip handles for comfort and control
53Es bevel capacity with positive detent stop at 45Es
Large adjustment levers for fast, accurate bevel and depth adjustments
Easy access spindle lock for easy blade changes
Powerful 15 amp motor provides power for a variety of cutting applications
Specifications:
Amperage: 15
Arbor Size in: 5/8"
Bevel: 53a°
Blade Diameter (in): 7.25
Blade Size: 7-1/4"
Case Type: No Case Included
Depth of Cut: 2-3/8"
Dust Blower: No
Dust Collection: No
Electric Motor Brake: No
Height in: 9 "
Length in: 20.75 "
Max. Bevel Capacity (a°): 53
Max. Depth of Cut at 45 Deg.: 1-15/16"
Max. Depth of Cut at 50 Deg.: 1-13/16"
Max. Depth of Cut at 90 Deg.: 2-3/8"
No Load RPM: 5,300
Rating: 120 V
Voltage: 120V
Weight: 12.3 lb
Works With: Rip Fence, WD7RIP, Worm-Drive Saw Lubricant Oil, BL8LB
