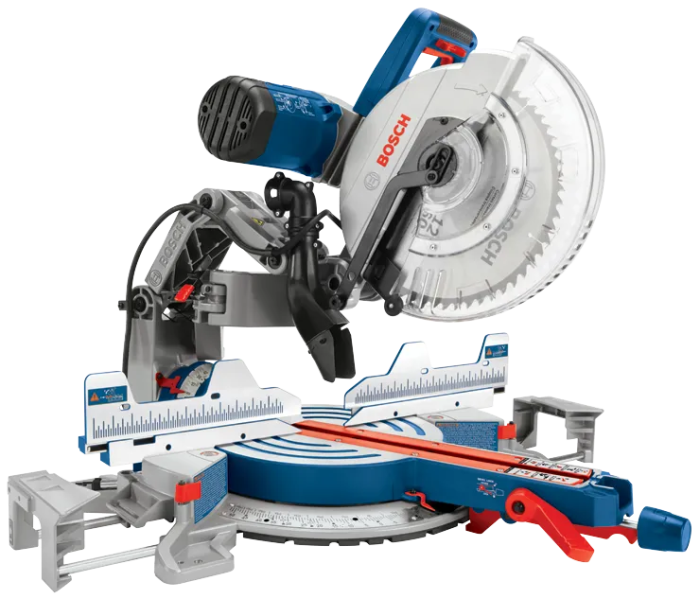

Bosch 12" Dual Bevel Glide Miter Saw GCM12SD
The Bosch-exclusive Axial-Glide offers wider cross-cuts, enhanced alignment and smooth glide for the life of the tool. The Bosch miter saw's 15 Amp motor delivers no-load speeds of 4,000 RPM for quick, accurate cuts in many materials. For added convenience and versatility, the saw is compatible with a variety of 12 In. blades and it has a clear lower guard to provide unobstructed cut-line visibility. The GCM12SD provides easy adjustments with upfront bevel and miter controls and detents at common angles. The saw's all-metal bevel lock lever and range selector are located up front to make bevel adjustments easy
Features:
- The Bosch GCM12SD is a 12 In. Dual-Bevel Glide miter saw that features a smooth cutting motion, accurate performance and a space-saving design of the Bosch-exclusive Axial-Glide system
- Pre-aligned SquareLock fences help the saw maintain precision throughout its life
- A soft-grip ambidextrous handle along with a combination dust chute and vacuum adapter add to user comfort
- The saw also offers a large cutting capacity, easy-to-read bevel and miter scales with detents at common angles, and easy-access upfront controls
- Integrated expanding base extensions: 60% more left-to-right material support than leading competitorœ 40 In. left to right
- Large easy-to-read uniform bevel and stainless steel miter scales: 52a° left/60a° right miter capacity; 47a° left/47a° right bevel capacity with marked detents and roof pitch angles
- Adjustable miter detents: detents at 0a°, 15a°, 31.6a°, 22.5a°, 45a°, 60a° right super-accurate and durable design
- Push-button miter detent overrideœ easy-to-access thumb actuated control right up front for fine miter angle adjustment
- Bevel detents: 0, 33.9a°, 45a° left/right for accurate cuts
- Category best 90% dust collectionœ optimized for cutting 2x material with a vacuum
- Ergonomic, ambidextrous trigger handle with soft gripœ large form fitting ergonomic handle provides comfort for all-day use
Specifications:
- Amperage: 15
- Bevel Angle Range: 47a° left and 47a° right
- Bevel Stops: 0a°, 33.9a°, 45a° and 47a° (L/R)
- Blade Diameter (in): 12
- Blade Size: 12"
- Category: Compound Miter Saws
- Dust Collection: Yes
- Electric Motor Brake: Yes
- Height in: 27 "
- Height of Table from Base Feet to Table Surface - In.: 3.75
- Length in: 32.375 "
- Max. Base Molding Against Fence: 3-7/8 In. (6-3/4 In. from 0a° to 47 L)
- Max. Crown Molding (38a° Spring) Angled Against Fence: 5-1/4 In. (5-1/2 In. from 0a° to 47a° L)
- Max. Crown Molding (45a° Spring) Angled Against Fence: 6 In.
- Max. Cut Capacity - 0a° Miter 0a° Bevel: 3-1/2 In. x 13-1/2 In. (4x14 Dimensional Lumber)
- Max. Cut Capacity - 0a° Miter 45a° Left Bevel: 2 In. x 13-1/2 In. (2x14 Dimensional Lumber)
- Max. Cut Capacity - 0a° Miter 45a° Right Bevel: 1-1/2 In. x 13-1/2 In. (2x14 Dimensional Lumber)
- Max. Cut Capacity - 45a° Miter 0a° Bevel: 3-1/2 In. x 9-1/2 In. (4x10 Dimensional Lumber)
- Max. Cut Capacity - 45a° Miter 45a° Left Bevel: 2 In. x 9-1/2 In. (2x10 Dimensional Lumber)
- Max. Cut Capacity - 45a° Miter 45a° Right Bevel: 1-1/2 In. x 9-1/2 In. (2x10 Dimensional Lumber)
- Miter Angle Range: 52a° Left, 60a° Right
- Miter Detents: 0a°, 15a°, 22.5a°, 31.6a°, 45a°, (Left/Right) 60a°, (Right)
- Miter Positive Stops: 0a°, 15a°, 22.5,a° 31.6a°, 45a° (Left/Right), 60a° (Right)
- No Load RPM: 4,000
- Separate On/Off Speed Control: Blank
- Voltage: 120V
- Weight: 65 lb
- Width in: 26.5 "
- Works With: Miter Saw Stands, T1B, T4B, GTA3800, Crown Molding Stops (Pair), MS1233, Length Stop, MS1234, Anti-Static Vacuum Hoses, VH1622A and VH1635A (by means of anti-static adapter included with those hoses), VAC008, and most other 22 mm and 35 mm anti-static hoses, Other Vacuum Hoses, VH1022, VH1035 and VH1635 (by means of VX120 adapter included with those hoses), VAC005 and VAC006 hoses, and most other 22 mm and 35 mm hoses, Adapters for 1-1/4 in and 1-1/2 in. Vacuum Hoses, VAC024. (The VAC002 adapter is not compatible with the GCM12SD.)
- Includes: (1) GCM12SD 12 In. Dual-Bevel Glide Miter Saw (1) Premium 12 In. 60-Tooth Carbide-Tipped Blade (1) Wrench (1) Toolless Vertical Work Clamp (1) Dust Bag/Assembly (1) Vacuum Adapter Elbow
| M&M Recommendation | M&M Recommendation products |
|---|---|
| Brand | Bosch |
| Cordless / Corded | Corded |
