Bosch 1 HP Variable Speed Palm Router Installer Kit PR20EVSNK

Details

The Bosch PR20EVS Colt variable-speed palm-grip router puts routing power and precision in the palm of your hand. The PR20EVS has an ergonomic palm-grip design with softgrip to make it very comfortable to hold, yet it also has ample power, making it typically easier to use than larger routers. It's more than a just a laminate trimmer, as it is the ideal tool for putting roundovers on deck railings, mortising for hinges, slot cutting, and much more. The motor features soft-start, a variable-speed control, and Constant Response circuitry to maintain speed under load. The PR001 fixed base features macro- and micro-fine depth adjustment. This kit includes the motor, fixed base, 1/4 In. self-releasing collet, comfortable foreged bit wrenches, edge guide and case. This laminate installer kit also includes a roller guide, offset base with roller guide, tilt base, and an underscribe plate with adjustment wrenches

Features:

1.0 HP (Max. tool output) 5.6 Amp motor -16,000 35,000 RPM
Rugged aluminum fixed base durable, solid and precise
Fast and precise depth adjustment system the best depth adjustment system in its class
Unique finger support pockets for additional stability, especially when trimming edges
Enhanced bit capacity fixed base accepts bits up to 1-5/16 In. in diameter
Soft Start reduces start-up torque
Constant Response circuitry monitors and maintains speed under load for consistent performance and provides overload protection
Versatile bit-changing systemœ fast, easy bit changes using two wrenches or spindle lock and one wrench
Quick-clamp system allows motor to be easily adjusted or moved from base to base
Offset base with spindle lock allows routing near vertical surfaces, such as when trimming laminate applied to top of countertop backsplash
Angled cord exit helps keep cord out of the way
Tilt base with detents at key angles allows routing at special angles and in hard-to-reach areas
Underscribe attachment mounts to fixed base for creating precise seams between sheets of laminates
Straight edge guide guides router along edges of workpiece or up to 3-5/8 In. from edge
Roller guide guides router when non-bearing bit or unpiloted bit is used

Specifications:

Amperage: 5.6
Base Opening: 1-9/16"
Case Type: Hard plastic
Collet Capacity: 1/4" Self-releasing
Dust Collection: No
Fixed-Base Depth Range: 1-3/16"
Height in: 7.5 "
Length in: 3.5 "
Max. Tool HP: 1
No Load RPM: 16,000-35,000
Subbase Length: 3-1/2"
Subbase Width: 3-3/4"
Variable Speed: Yes
Voltage: 120V
Weight: 3.3 lb
Width in: 3.75 "
Works With: Plunge Base, PR011, Offset Subbase and Dust Collection Attachment, PR007, Plastic Cover for Fixed Base, PR008, Subbase for Common Threaded Template Guides, PR110, Subbase for RA-Series Template Guides, PR009, Roller Guide, PR003

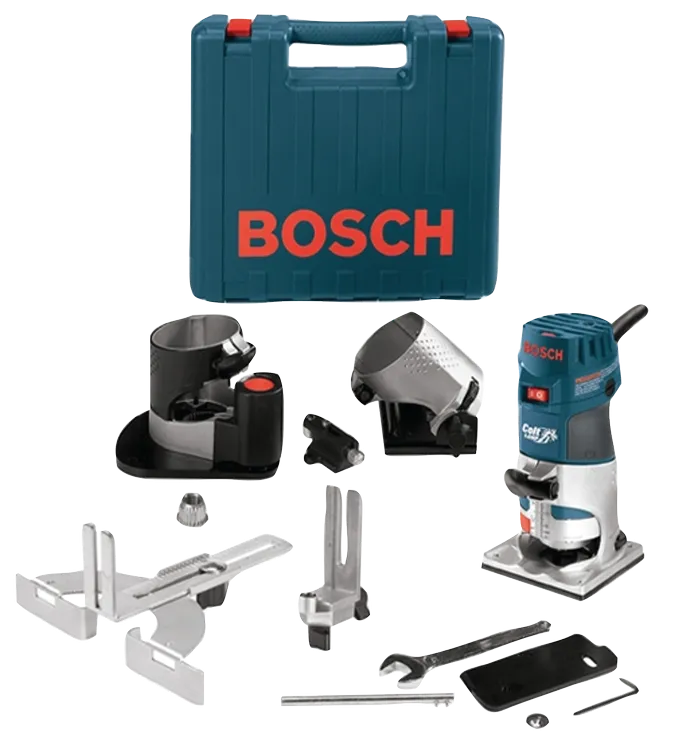

Includes: (1) -- PR20EVS Motor (1) - 1/4" Self-Releasing Collet Chuck - 2610008122 (1) - 17 mm Collet Wrench - 2609110438 (1) - 10 mm Shaft Wrench - 2609110786 (1) - Fixed Base -- PR001 (1) -- Straight Edge Guide -- PR002 (1) -- Roller Guide -- PR003 (1) -- Offset Base with Roller Guide -- PR004 (1) -- Tilt Base -- PR005 (1) -- Underscribe Plate with Wrenches -- PR006 (1) - Carrying Case

More Information

More Information
Trades	Woodworking
Brand	Bosch
Cordless / Corded	Corded
