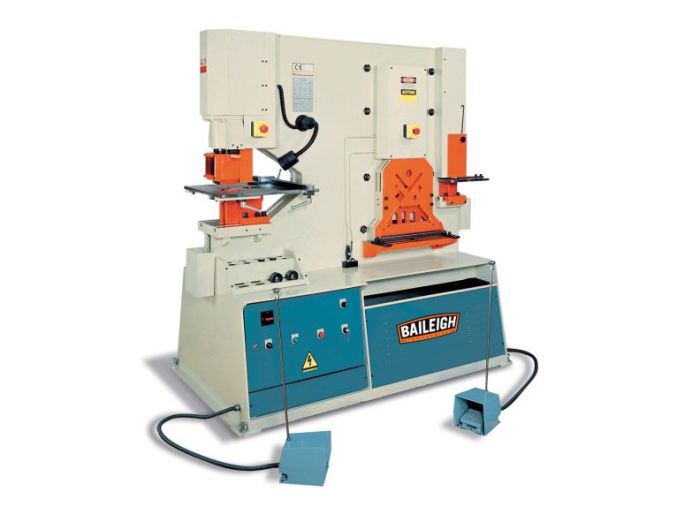

Baileigh SW-95 220V 3Phase Dual Operator 95 Ton 5 Station Ironworker BA9-1007865

Features

• Runs on 220-volt 3-phase power and houses 95 tons of punching pressure as well as a whopping 123 tons of shearing and notching force
• 5 integrated workstations each execute a different function: punching, notching, flat bar shearing, angle shearing, and bar shearing
• Dual-operator design enables 2 people to work at opposite ends of the machine simultaneously without loss of power at either station
• Heavy structural steel plate framework ensures rigidity and eliminates flexing and hydraulic cylinders use entirely vertical movement to perform all functions
• Electric back gauge and adjustable material stops save you effort and deliver precise results for production runs
• Large worktables separate into 2 pieces, allowing you to get angle iron and oddly shaped materials to the punch without difficulty
• Includes 7 sets of punches and dies to accommodate a variety of applications and accepts universal tooling - Jog dial allows for simple and secure tool alignment
• Foot pedal provides convenient stop and start control and adjustable stroke control of both the upward and downward strokes limits movement and reduces costs
• Extra-deep 16” throat depth at the punch station handles large pieces of material and increases capacity
• Hydraulic hold-downs at the shear station ensure safe operation and even cuts and waste buckets keep your shop neat and reduce time spent on clean-up

Specifications

• Stock Number: BA9-1007865
• Angle Shear Work Height (In.): 40.9"
• Coper Notcher Work Height (In.): 41.3"
• Flat Bar Shear Max Capacity (In.): 16" x .75"
• Flat Bar Shear Max Square Capacity (In.): 1.75" x 1.75"
• Flat Bar Shear Work Height (In.): 28.5"
• Model Number: SW-95
• Prop 65: Cancer and Reproductive Harm
• Rod Shear Max Round (In): 1.75"
• Shipping Dimensions (L x W x H) (In.): 85x55x85
• Warranty: 1 Year
• Gross Weight: 6050.0
• Net weight: 6050.0
• Blade Length (In.): 16.125"
• Input Power: 220V / 3-phase
• Throat Depth (In.): 16"
