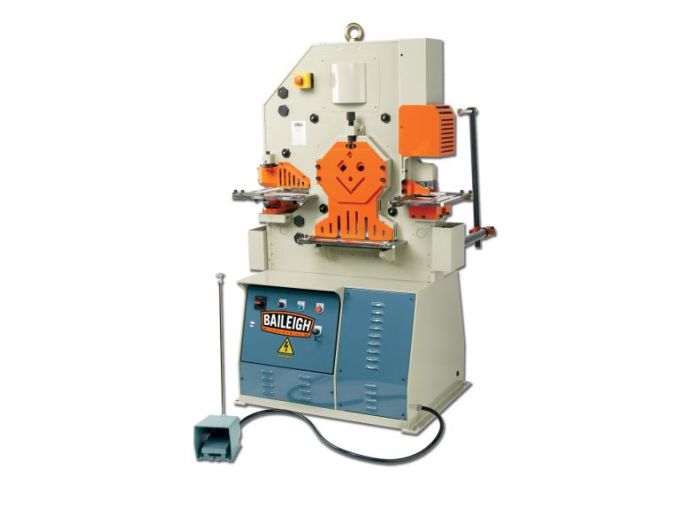

Baileigh SW-623 220V 3Phase 62 Ton 5 Station Ironworker BA9-1007812

Features

• Runs on 220-volt 3-phase power.
• Delivers a robust 62 tons of pressure at all 5 integrated stations: punching, flat bar shearing, angle shearing, bar shearing, and rectangle notching.
• Pure vertical hydraulic movement at each station produces exceptionally clean cuts, notches, and holes in seconds.
• You can set the back-gauge and material stops to save time and ensure repeatability for production runs.
• Large 2-piece worktables, equipped with handy meter guides, pull out from the machine to fit oversized or awkwardly shaped materials.
• Downward and upward adjustable stroke controls minimize unnecessary machine motion, decreasing energy usage as well as wear and tear.
• Knurled handle located at the top of the notching station lets you adjust the material hold-down to deliver crisp shears and punched holes.
• Our patented swing-away material stripper lets you change tooling in seconds.
• Specify tooling alignment with a turn of the jog dial for increased safety.
• Comes standard with 7 punch and die sets, ready to handle a variety of materials and profiles.

Specifications

• Stock Number: BA9-1007812
• Flat Bar Shear Max Capacity (In.): 13.50" x .5"
• Flat Bar Shear Work Height (In.): 31.5"
• Model Number: SW-623
• Motor (HP): 5.00 hp
• Prop 65: Cancer and Reproductive Harm
• Punch Max Capacity (In.): 1.125" x .625"
• Rating (Tons): 62
• Shipping Dimensions (L x W x H) (In.): 60x48x76
• Warranty: 1 Year
• Gross Weight: 2465.0
• Net weight: 2465.0
• Blade Length (In.): 14.125"
• Input Power: 220V / 3-phase
• Stroke Length (In.): 2
• Throat Depth (In.): 8"
• Work Height (In.): 39.5
