Baileigh SW-441 220V 1Phase 44 Ton 4 Station Ironworker BA9-1007756

This ironworker’s small footprint will fit into tight shop spaces and just about any job site.
The SW-44 comes standard with features that you won’t find on most ironworkers in this price range, like a large table with product guides and a foot pedal

Features

• Runs on 220-volt single-phase power and will work at virtually any site in North America.
• Delivers 44 tons of force for punching and shearing.
• Stations for 4 main functions: flat-bar shearing, angle cutting, section cutting for multiple profiles, and punching.
• Runs at up to 23 cycles per minute, increasing the speed of your projects.

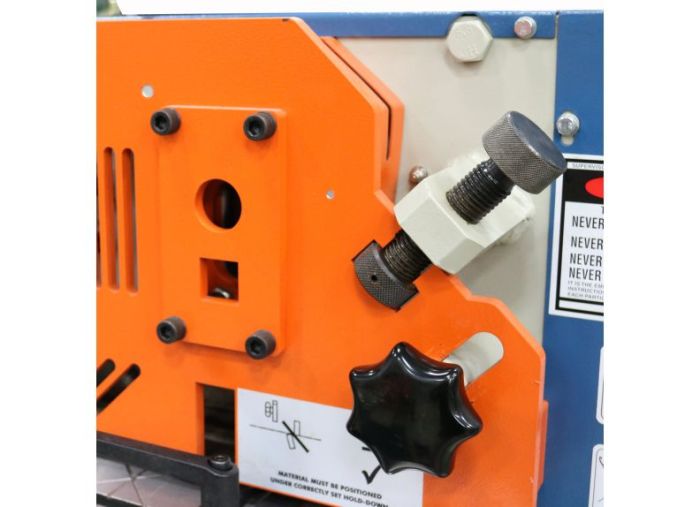

• Product hold-downs for all stations ensure clean, straight shearing.
• Large reference tables accommodate bigger pieces of material and easily pull out from the machine, so that you can get the punch closer to angle iron.
• Product guides make repeatability a cinch when you’re setting up production runs.
• Large-button control panel and foot pedal punch control are conveniently located.
• Offers adjustable stroke control, with upstrokes and down-strokes for the punching and shearing sections and a maximum stroke length of 1.125".
• Accepts optional tooling available from Baileigh Industrial, such press brake attachments, to make this machine even more versatile.

Specifications

• Stock Number: BA9-1007756
• Angle Shear Max Capacity 1/2": 3 x 3
• Angle Shear Work Height (In.): 40
• Flat Bar Shear Max Capacity (In.): 7.87" x .5"
• Flat Bar Shear Rating (Tons): 44
• Flat Bar Shear Work Height (In.): 42.32"
• Model Number: SW-441
• Motor (HP): 3.0 hp
• Prop 65: Cancer and Reproductive Harm
• Punch Max Capacity (In.): .75" x .625"
• Punch Rating (Tons): 44
• Rating (Tons): 44
• Shipping Dimensions (L x W x H) (In.): 60x48x71
• Warranty: 1 Year
• Gross Weight: 1470.0
• Net weight: 1470.0
• Blade Length (In.): 13.87"
• Input Power: 220V / 1-phase
• Stroke Length (In.): 1.125"
• Throat Depth (In.): 6.88"
