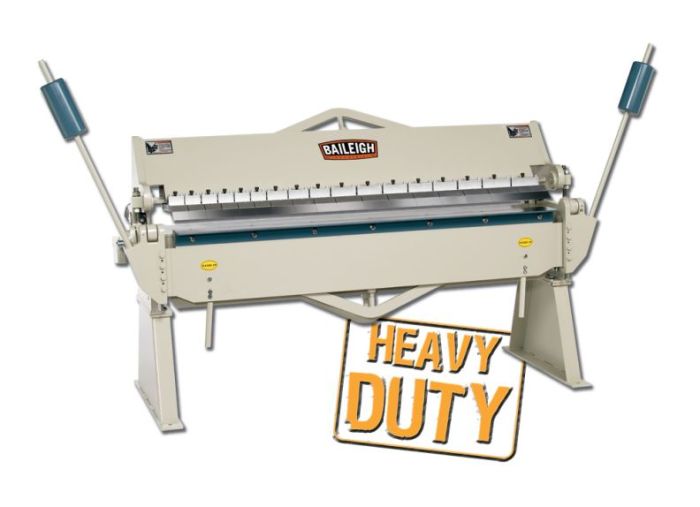

Baileigh BB-7212 Heavy Duty Manually Operated Box and Pan (Finger) Brake, 6' Length, 12 Gauge Mild Steel Capacity BA9-1000536

Features

• Bends 12-gauge mild steel over its full 6-foot (72”) length
• Maximum bend angle of 135°
• Comes standard with 17 hardened fingers of varying sizes (6 fingers of 3", 3 of 4", 6 of 5", and 2 of 6")
• 3-piece finger design allows for a 6” box depth
• You can set up a long straight brake or a segmented one for boxes or pans
• 2 counterbalance weights make it easy to bend at maximum capacity and reduce operator strain
• Electro-welded and truss-supported steel frame prevents distortion or twisting and produces high-quality bends
• Heavy-duty steel floor stand puts the beam at optimal working height
• Recommended for: Smaller HVAC or fabrication shops that need a metal brake in a manageable, relatively compact size

Specifications

• Stock Number: BA9-1000536
• Beam Adjustment (Front to Rear) (In.): 1"
• Maximum Box Depth (In.): 6"
• Mild Steel Capacity (Gauge): 12.0000
• Model Number: BB-7212
• Prop 65: Cancer and Reproductive Harm
• Style (Type): Finger Brake
• Warranty: 1 Year
• Gross Weight: 2260.0
• Net weight: 2260.0
• Shipping Dimensions (L x W x H) (In.): 96x32x43
• Input Power: Manual
• Max. Bend (Deg.): 0 – 135°
• Overall Length (In.): 72”
