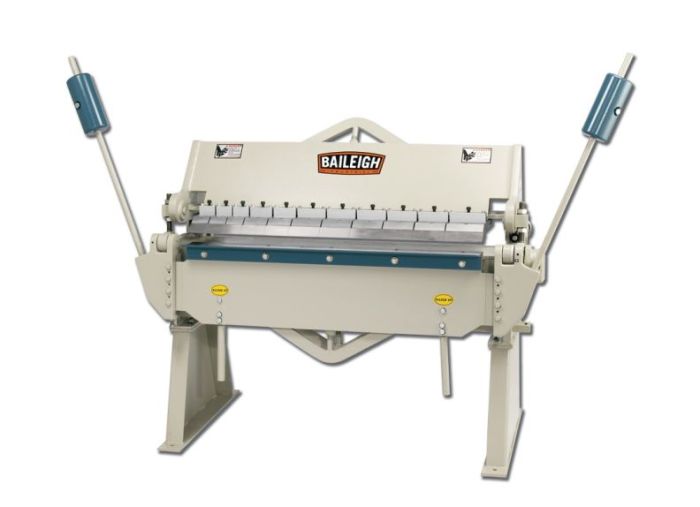

Baileigh BB-4812 Heavy Duty Manually Operated Box and Pan (Finger) Brake, 4' Length, 12 Gauge Mild Steel Capacity BA9-1000404

Features

• Bends 12 gauge (or lighter) mild steel
• 4 feet (48”) long with a maximum bend angle of 135°
• Compact size makes a great fit for tight floor plans
• Includes 11 hardened and polished 3-piece fingers of varying lengths (3 at 3”, 2 at 4”, 5 at 5”,1 at 6”). You can make many different box sizes
• Up to 6” box depth, made possible by 3-piece design, is one of the largest available
• 2 handwheels adjust the gap for varying material thickness
• Comes standard with a stop rod system to help you make repeatable bends and simplify production runs
• Heavy counterweights assist you with bending thick sheet metal—a relief for operators who frequently use the box brake for long periods of time
• Massive torsion system, connected to the steel beam and leaf, keeps the beam from twisting at maximum capacity
• Electro-welded steel framework, supported by solid steel adjustable trusses, prevents flexing, and maintains accuracy

Specifications

• Stock Number: BA9-1000404
• Beam Adjustment (Front to Rear) (In.): 1"
• Maximum Box Depth (In.): 6"
• Mild Steel Capacity (Gauge): 12.0000
• Model Number: BB-4812
• Prop 65: Cancer and Reproductive Harm
• Style (Type): Finger Brake
• Warranty: 1 Year
• Gross Weight: 1695.0
• Net weight: 1695.0
• Shipping Dimensions (L x W x H) (In.): 70x32x42
• Input Power: Manual
• Max. Bend (Deg.): 0 – 135°
• Overall Length (In.): 48”
