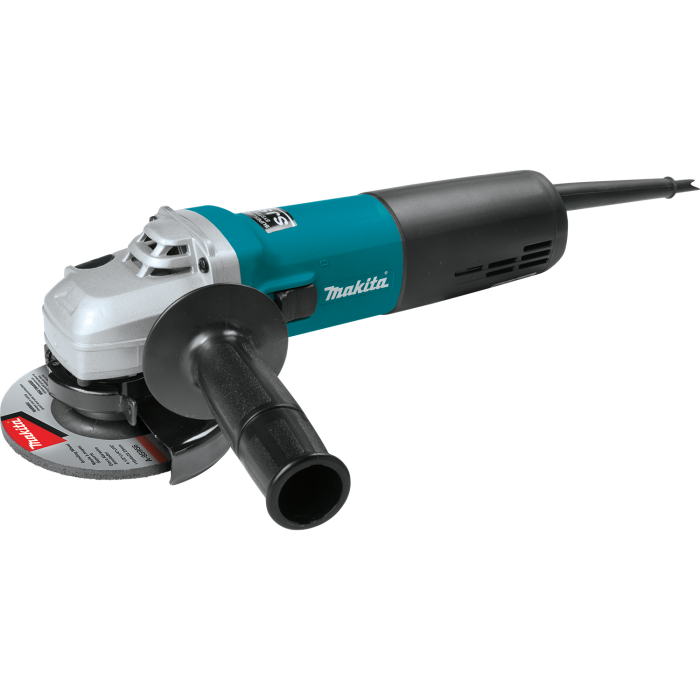

Makita’s 5†SJS™ Angle Grinder combines 13 AMP variable speed power with comfort and motor-protection features for longer-lasting stone grinding and polishing performance. The 9565CV is engineered with Makita’s innovative SJS™ mechanical clutch system to protect the gears for longer tool life.
Features:
- Powerful 13.0 AMP motor delivers more output and variable (2,800 - 10,500) RPM
- SJSâ„¢ technology is a mechanical clutch system that helps prevent motor and gear damage by allowing the drive shaft to slip if the wheel is forced to stop
- Variable speed control dial enables user to match the speed to the application
- Constant speed control automatically applies additional power to the motor to maintain speed under load
- Soft start suppresses start-up reaction for smooth start-ups and longer gear life
- Electronic current limiter helps protect the motor from overload
- Labyrinth construction seals and protects the motor and bearings from dust and debris for longer tool life
- Slide switch with lock-on setting for continuous use
- "Tool-less" wheel guard for easy adjustment
- Zig-zag varnish protects the armature coil from dust and debris for longer tool life
Specifications:
- Wheel Diameter: 5"
- AMPS: 13
- No Load Speed (variable speed): 2,800 - 10,500 RPM
- Spindle Type: 5/8" - 11 UNC
- Lock-On Switch: Yes
- Lock-Off Switch: No
- Switch Type: Body grip/slide
- Overall Length: 11-3/4"
- Net Weight: 4 lbs.
- Variable speed dial: Yes
- Power Type: Corded
- Bind-Up Control: Yes
- Packaged Depth (in): 5.5"
- Packaged Height (in): 5.75"
- Packaged Width (in): 15.25"
- Shipping Weight: 7.4 lbs.
- UPC Code: 088381-033909
Includes:
- (1) 5" x 1/4" x 7/8" INOX Grinding Wheel, 36 Grit (A-95962)
- (1) 5" Tool-less Wheel Guard (135108-2)
- (1) Lock Nut (193465-4)
- (1) Lock Nut Wrench (782412-6)
- (1) Inner Flange (224378-9)
- (1) Side Handle (153489-2)
| Brand | Makita |
|---|---|
| Voltage | 18 V |
