Makita 4-1/2" SJS HighPower Angle Grinder 9564CV

Skip to the beginning of the images gallery

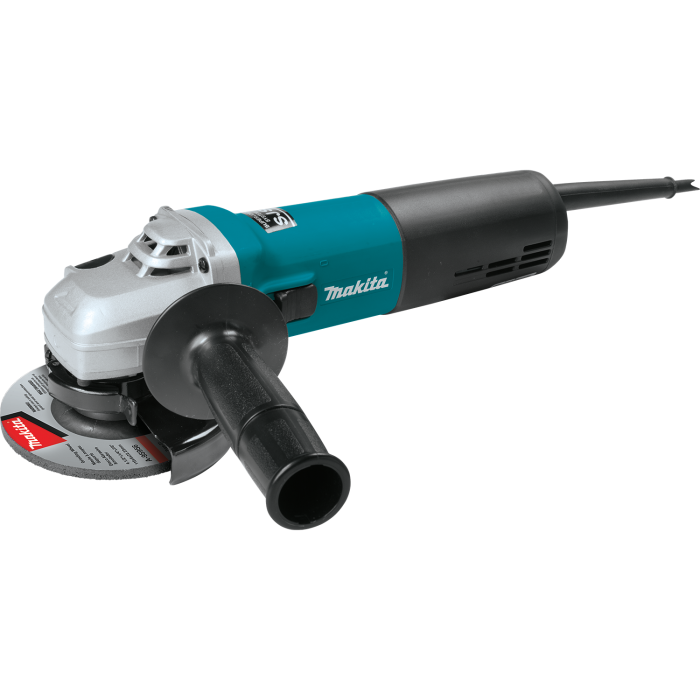

Makita 4-1/2" SJS HighPower Angle Grinder 9564CV

Visit Makita Brand Store

Be the first to review this product

In Stock

SKU

9564CV

$229.00

Notify me when the price drops

Details

Makitaâ€™s 4-1/2â€ SJSâ„¢ Angle Grinder combines 13 AMP variable speed power with comfort and motor-protection features for longer-lasting stone grinding and polishing performance. The 9564CV is engineered with Makitaâ€™s innovative SJSâ„¢ mechanical clutch system to protect the gears for longer tool life.

Features:

Powerful 13 AMP motor delivers more output and variable (2,800 - 10,500) RPM
SJSâ„¢ technology is a mechanical clutch system that helps prevent motor and gear damage by allowing the drive shaft to slip if the wheel is forced to stop
Variable speed control dial enables user to match the speed to the application
Constant speed control automatically applies additional power to the motor to maintain speed under load
Soft start suppresses start-up reaction for smooth start-ups and longer gear life
Electronic current limiter helps protect the motor from overload
Labyrinth construction seals and protects the motor and bearings from dust and debris for longer tool life
Spiral bevel gears for smoother rotations and a more efficient transfer of energy
Slide switch with lock-on setting for continuous use
"Tool-less" wheel guard for more convenient adjustments

Specifications:

Wheel Diameter: 4-1/2"
AMPS: 13
No Load Speed (variable speed): 2,800 - 10,500 RPM
Spindle Type: 5/8" - 11 UNC
Lock-On Switch: Yes
Lock-Off Switch: No
Switch Type: Body grip/slide
Overall Length: 11-3/4"
Net Weight: 5.3 lbs.
Variable speed dial: Yes
Power Type: Corded
Bind-Up Control: Yes
Packaged Depth (in): 5.5"
Packaged Height (in): 5.75"
Packaged Width (in): 15.25"
Shipping Weight: 7.3 lbs.
UPC Code: 088381-037242

Includes:

(1) 4-1/2" Grinding Wheel (A-95956)
(1) 4-1/2" Tool-less Wheel Guard (135107-4)
(1) Lock Nut (193465-4)
(1) Lock Nut Wrench (782412-6)
(1) Inner Flange (224378-9)
(1) Side Handle (153489-2)
