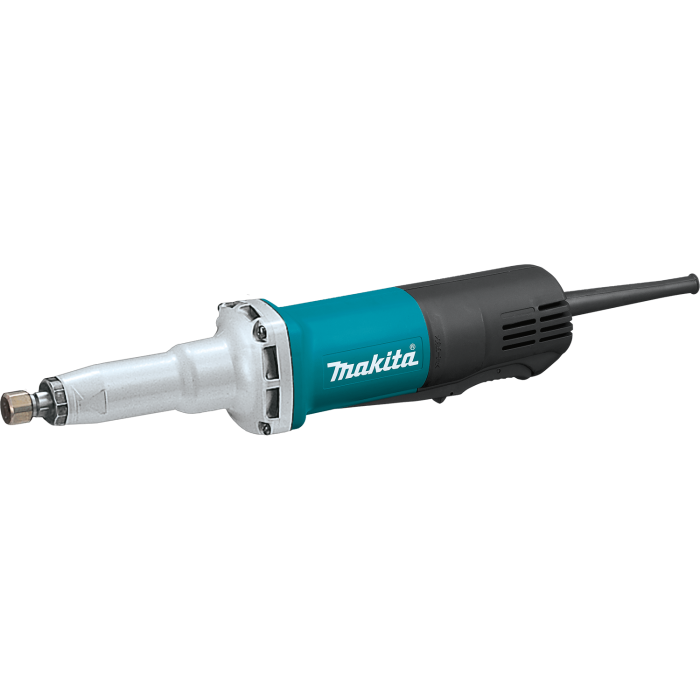

Makita’s ¼†SJS™ Paddle Switch Die Grinder (model GD0801C) combines a powerful 6.6 AMP motor with motor and gear protection features for longer-lasting grinding performance. The GD0801C features a large flush-mount paddle switch for increased convenience.
Features:
- Powerful 6.6 AMP motor delivers 7,000-29,000 RPM for faster material removal
- SJSâ„¢ technology is a mechanical clutch system that helps prevent motor and gear damage by allowing the drive shaft to slip if the wheel is forced to stop
- Variable speed control dial enables user to match the speed to the application
- Constant speed control automatically applies additional power to the motor to maintain speed under load
- Soft start suppresses start-up reaction for smooth start-ups and longer gear life
- Electronic current limiter helps protect the motor from overload
- Directional air-flow vents channel air output away from the operator
- Labyrinth construction prevents debris from penetrating the motor, bearings and gears for longer tool life
- Zig-zag varnish protects the armature coil from dust and debris for longer motor life
- Large flush-mount paddle switch for easy operation
Specifications:
- Max. Wheel Diameter: 1"
- AMPS: 6.6
- Collet: 1/4"
- No Load Speed (variable speed): 7,000 - 29,000 RPM
- Lock-On Switch: No
- Lock-Off Switch: Yes
- Overall Length: 14-3/8"
- Net Weight: 4.2 lbs.
- Variable speed dial: Yes
- Power Type: Corded
- Packaged Depth (in): 5.5"
- Packaged Height (in): 4.5"
- Packaged Width (in): 20.5"
- Shipping Weight: 7 lbs.
- UPC Code: 088381-682459
Includes:
- (1) 1/4" Collet (192986-3)
- (1) Spanner Wrench (781203-2)
- (1) Side Handle (192985-5)
- (1) Wrench #19 (781206-6)
| Brand | Makita |
|---|---|
| Voltage | 36 V |
Write Your Own Review
Download informationGD0801C Instruction ManualGD0801C Parts Breakdown
