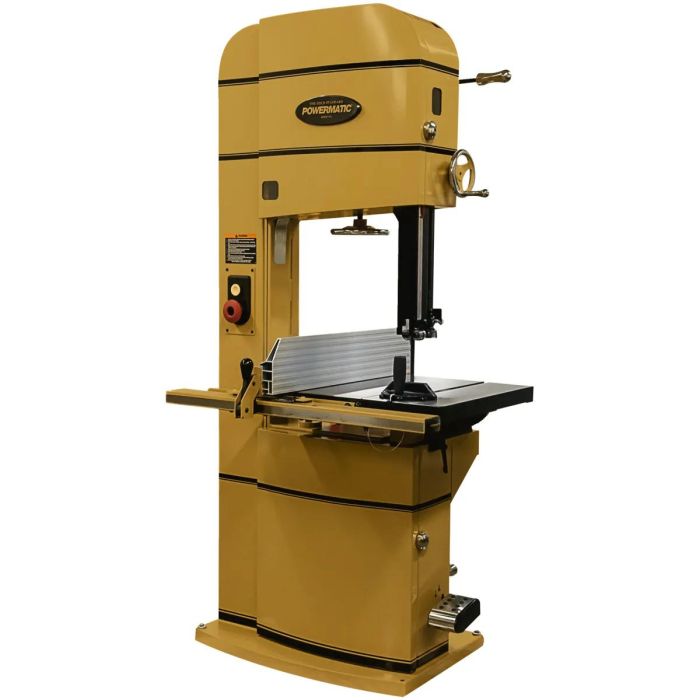

This industrial 20" bandsaw is built for shops that demand long-term reliability, exceptional cutting capacity, and precise performance on every project. Its powerful TEFC (totally enclosed, fan-cooled) motor prevents dust intrusion and ensures consistent operation, even in high-demand environments. Designed with an expansive cast-iron table, the saw provides generous workspace in front of the blade, giving operators more control and stability when handling large panels, thick hardwoods, or intricate curved work.
The table tilts 45° to the right and 10° to the left for versatile angled cuts and comes equipped with a standard T-slot miter gauge for guided accuracy. Wheel assemblies, guards, and adjustment mechanisms have been engineered for heavy-duty use: balanced cast-iron drive wheels with vulcanized rubber tires, a wheel brush to keep them clean, and a fully adjustable blade guard that remains easy to access when changing blades. The foot brake delivers immediate stopping power, enhancing safety during operation. Combined with reinforced steel and cast-iron construction, this machine offers the durability and rigidity required for continuous industrial cutting.
Features
- Powerful TEFC motor keeps dust out for longer service life and maximum performance
- Extra-large cast-iron table provides expanded workspace in front of the blade
- Table tilts 45° right and 10° left and includes a T-slot miter gauge for guided cuts
- Fully adjustable blade guard surrounds the blade while remaining easy to access for blade changes
- Balanced cast-iron drive wheels with vulcanized rubber tires ensure smooth, stable blade tracking
- Lower wheel brush prevents sawdust buildup and improves cutting accuracy
- Convenient foot brake brings the blade to a rapid stop for enhanced safety
- Two-speed drive pulley system supports a variety of cutting applications
- 4" dust collection port connects easily to workshop dust systems
- Reinforced upper wheel housing and guidepost offer rigidity for industrial workloads
- Heavy-duty rack-and-pinion trunnion with a wide flange eliminates table flex under load
Specifications
- Size: 20"
- Cutting Capacity (Width × Depth): 20" × 18"
- Cutting Capacity Width: 20"
- Cutting Height: 20"
- Blade Length: 158½"
- Min Blade Width: 1/4"
- Max Blade Width: 1-1/2"
- Max Saw Blade: 1½"
- Blade Width Range: 1/4" to 1-1/2"
- Table Size: 24" × 24" (listed), also noted as 24" × 27" (L × W)
- Table Dimensions: 24" × 24"
- Dimensions: 31.5" × 43" × 82"
- Length: 31.5"
- Width: 43"
- Height: 82"
- Weight: 915 lbs
| Brand | Powermatic |
|---|---|
| Voltage | 460 V |
| Tool Type | Wood |
| Power | 3 Phase |
