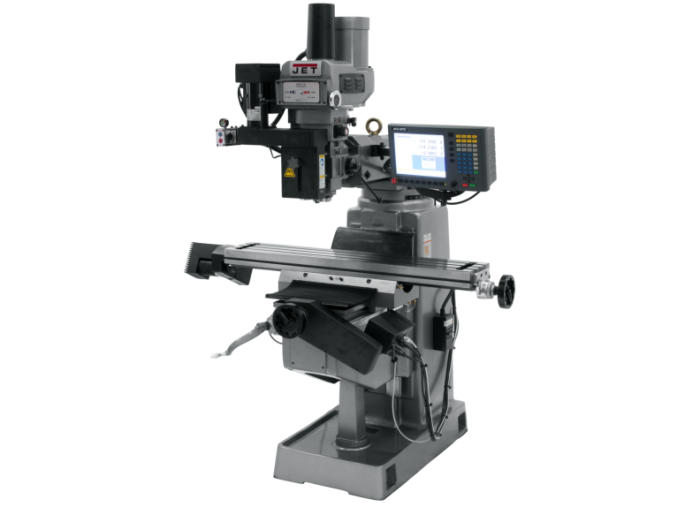

Jet JTM-4VS Mill With 2-Axis ACU-RITE G-2 MILLPWR CNC JT9-690938

Features

• 12.1" High resolution display (1024 x 768) with 3D graphics
• Available offline software
• Built-in calculator: Performs standard, trig, and geometry calculations and transfers them directly into part programs
• Closed loop feedback using Acu-Rite precision linear encoders with 0.00005" resolution
• Estimated run time feature
• Jog Control allows table movement, quickly from one location to another - using one axis at a time or any two axes simultaneously
• Powerful DC Servo motor assemblies that include mounting castings and hardware
• Precision ground ball screws eliminate backlash for precise lateral movements
• USB + Ethernet compatible

Specifications

• Stock Number: JT9-690938
• CNC Package: ACU-RITE MILLPWR® G2
• Collet Capacity: 1/8 - 7/8
• Distance Spindle to Column (Max.) (In.): 19
• Max Distance Spindle to Table (In.): 17-1/2
• Model Number: JTM-4VS CNC G2
• Motor (HP): 3 HP, 230/460V, 3Ph
• Number of Axis: 2
• Overall Dimensions (L x W x H) (In.): 66 x 63 x 85
• Prop 65: Cancer and Reproductive Harm
• Quill Diameter (In.): 3-3/8
• Quill Down Feed Rates (IPR): .0015 - .003 - .006
• Range of Spindle Speeds (RPM): 60 - 4,200
• Spindle Taper (In. x TPI): R-8
• Spindle Travel (In.): 5
• Style (Type): CNC
• T-Slot Centers (In.): 2-1/2
• Table Cross Travel (In.): 12
• Table Longitudinal Travel (In.): 34
• Table Size (L x W) (In.): 9 x 49
• Travel of Knee (In.): 14-1/2
• Travel of Ram (In.): 13-3/8
• Warranty: 2 Year
• Work Table Weight Capacity (Lbs.): 660
• Gross Weight: 2600.0
• Net weight: 2600.0
