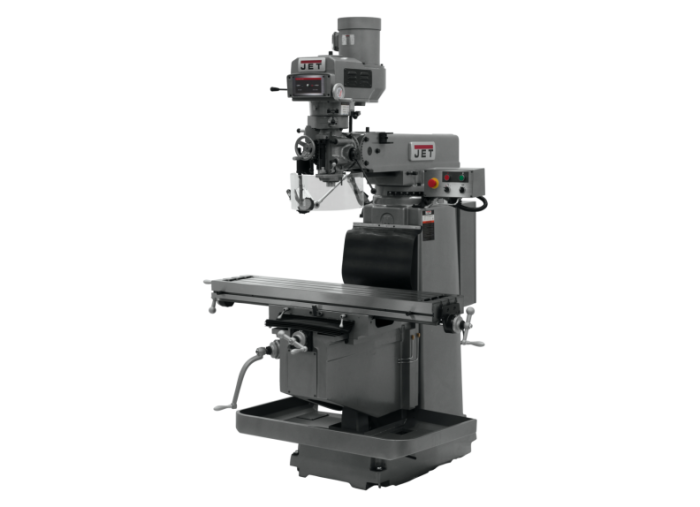

Jet JTM-1254RVS with 3-Axis ACU-RITE G-2 MILLPOWER CNC JT9-691944

Features

• 12.1" High resolution display (1024 x 768) with 3D graphics
• 3-D Contouring, ability to import and run G-code files from CAD/CAM programs
• Adjustable gibs throughout
• Automatic Lubrication every 180 minutes with a flow of 3-6cc reduces maintenance
• Available offline software
• Estimated run time feature
• Jog Control allows table movement, quickly from one location to another - using one axis at a time or any two axes simultaneously
• Three Precision ground t-slots
• Two 115V outlets on electrical box for Powerfeeds only
• USB + Ethernet compatible

Specifications

• Stock Number: JT9-691944
• Column Width (In.): 14-1/4
• Distance Spindle to Column (Max.) (In.): 27-3/4
• Max Distance Spindle to Table (In.): 23
• Model Number: JTM-1254RVS CNC G2
• Motor (HP): 5HP, 230/460V, 3Ph
• Overall Dimensions (L x W x H) (In.): 26.75 x 16.625 x 58.625
• Prop 65: Cancer and Reproductive Harm
• Quill Diameter (In.): 4-1/8
• Quill Down Feed Rates (IPR): .0015 - .003 - .006
• Range of Spindle Speeds (RPM): 80 - 3,800
• Saddle Width (In.): 25-5/8
• Spindle Taper (In. x TPI): R-8
• Spindle Travel (In.): 5
• Style (Type): CNC
• T-Slot Centers (In.): 2-1/2
• Table Cross Travel (In.): 15-1/3
• Table Longitudinal Travel (In.): 33-7/8
• Table Size (L x W) (In.): 12 x 54
• Travel of Knee (In.): 19-1/4
• Travel of Ram (In.): 25
• Warranty: 2 Year
• Work Table Weight Capacity (Lbs.): 925
• Gross Weight: 3696.0
• Net weight: 3260.0
