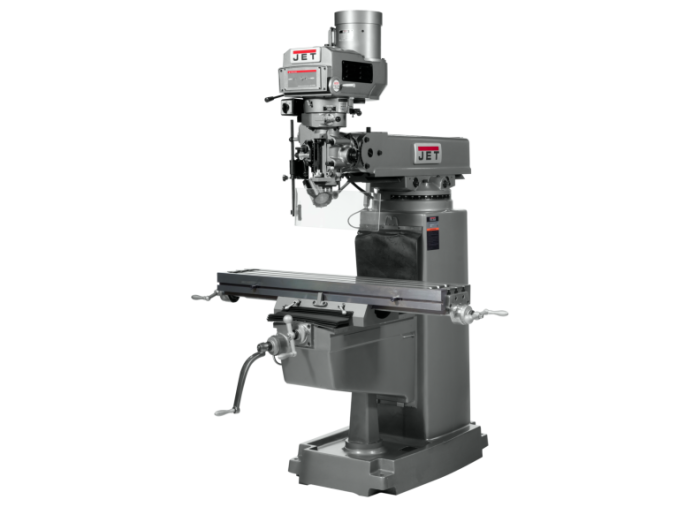

Jet JTM-1050VS2 Variable Speed Mill with LED Worklamp and Spindle Guard, 230/460V, 3Ph JT9-691050
The JET JTM-1050VS2 features our proprietary Meehanite® column castings, a heavy-duty hardened and ground 10” x 50” table, and high precision class 7 precision bearings support the spindle. Precision bored and honed milling heads ensure quality cuts, and the three-stage power downfeed with automatic stop makes the JET Variable Speed Milling Machines easy to use. JET precision engineering ensures superior results with all the features you've come to expect, all backed by the industry-leading JET Two Year Warranty
Features
- Chrome lead screws on X and Y axis
- Hardened and ground table
- Hardened and ground table capable of supporting 840 pounds
- Internal coolant tank built into base for use with optional coolant system (coolant pump not included)
- JET's proprietary certified Meehanite column castings
- One shot lubrication system
- Precision bored and honed milling head
- Three stage power downfeed with automatic stop
Specifications
- Stock Number: JT9-691050
- Collet Capacity: 1/8 - 5/8
- Column Width (In.): 13
- Distance Spindle to Column (Max.) (In.): 27
- Model Number: JTM-1050VS2
- Motor (HP): 3 HP,230/460V ,3Ph
- Overall Dimensions (L x W x H) (In.): 63 x 63 x 89
- Prop 65: Cancer and Reproductive Harm
- Quill Diameter (In.): 3-3/8
- Quill Down Feed Rates (IPR): .0015 / .003 / .008
- Range of Spindle Speeds (RPM): 60-500/500-4200
- Saddle Width (In.): 20
- Spindle Taper (In. x TPI): R8
- Spindle Travel (In.): 5
- T-Slot Centers (In.): 2-1/2
- Table Cross Travel (In.): 14-3/4
- Table Longitudinal Travel (In.): 34-1/4
- Table Size (L x W) (In.): 10 x 50
- Travel of Knee (In.): 16-1/8
- Warranty: 2 Year
- Work Table Weight Capacity (Lbs.): 840
- Gross Weight: 2568.0
- Net weight: 2466.0
| Brand | Jet |
|---|---|
| Warranty | 2 Year |
| Power | 3 Phase |
