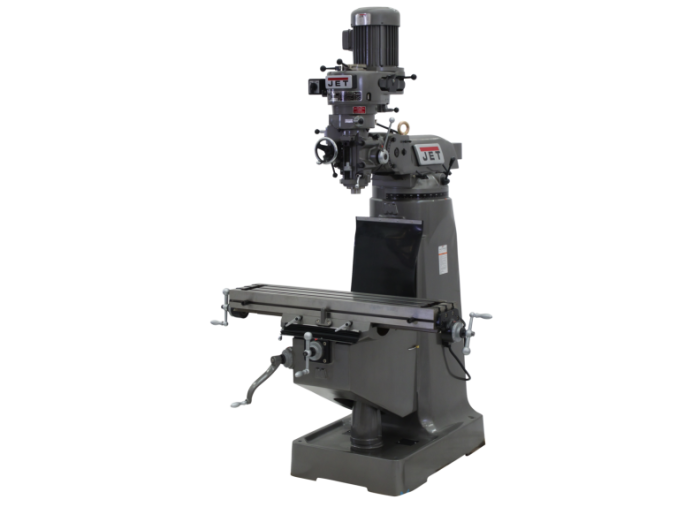

Three-stage power down feed with auto stop, high precision Class 7 spindle bearings and the rugged stability of Meehanite castings ensures you get everything you need from the JTM-1 and 2 models. The internally cooled spindle head prevents seizing, and JET precision engineering ensures superior results with all the features you've come to expect, all backed by the industry-leading JET Two Year Warranty
Features
- Certified Meehanite® castings
- Heavy duty splined motor drive
- Internal coolant tank built into base for use with coolant system (Coolant pump not included)
- Large Diameter quill is chromed
- One shot lubrication system
- Precision bored and honed milling head
- Precision hardened and ground ways
- Spindle head is internally cooled
- Three stage power downfeed with automatic stop
- Tolerance test sheet included
Specifications
- Stock Number: JT9-692182
- Collet Capacity: 1/8 - 7/8
- Distance Spindle to Column (Max.) (In.): 19
- Max Distance Spindle to Table (In.): 17-1/2
- Model Number: JTM-2
- Motor (HP): 2 HP, 115/230V, 1Ph
- Number of Axis: 3 (Knee)
- Number of Spindle Speeds: 8
- Overall Dimensions (L x W x H) (In.): 57 x 64 x 82
- Prop 65: Cancer and Reproductive Harm
- Quill Diameter (In.): 3-3/8
- Quill Down Feed Rates (IPR): .0015 - .003 - .006
- Range of Spindle Speeds (RPM): 80 - 2,720
- Spindle Taper (In. x TPI): R-8
- Spindle Travel (In.): 5
- Style (Type): Step Pulley R8
- T-Slot Centers (In.): 2-1/2
- Table Cross Travel (In.): 12-1/2
- Table Longitudinal Travel (In.): 23-7/8
- Table Longitudinal Travel With Powerfeed (In.): 20-2/7
- Table Size (L x W) (In.): 9 x 42
- Travel of Knee (In.): 14-1/2
- Travel of Ram (In.): 13-3/8
- Warranty: 2 Year
- Work Table Weight Capacity (Lbs.): 550
- Gross Weight: 2200.0
- Net weight: 2200.0
| Brand | Jet |
|---|---|
| Warranty | 2 Year |
