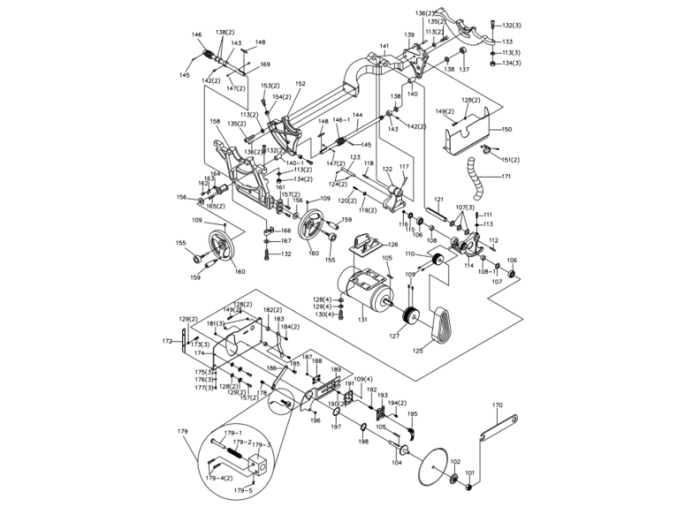

Jet JTAS-10XL50-5/1DX 5HP, 1Ph, 50 in. Rip Trunnion & Motor 708677PK-2

Index Number

Part Number

Description

Size

Qty

101

JTAS10L-101

Arbor Nut

1

102

JTAS10-102

Arbor Flange

1

104

JTAS10L-104N

Arbor with Flange

1

105

JTAS10-105

Key

M5x44

2

106

BB-6203ZZ

Ball Bearing

6203ZZ

2

107

JTAS10-107

Wave Washer

4

108

JTAS10-108

Rear Bearing Load Spacer

2

108-1

JTAS10DX-108

Front Bearing Load Spacer

1

109

TS-0267041

Socket Set Screw

1/4-20x3/8

10

110

JTAS10-110N

Arbor Pulley

1

111

TS-0209081

Socket Head Cap Screw

3/8-16x1-3/4

1

112

JTAS10DX-112

Key

1/4x1/4x45

1

113

TS-0720091

Lock Washer

3/8

10

114

JTAS10DX-114

Arbor Bracket

1

115

JTAS10-115

Spanner Nut

1

116

JTAS10L-116

Nut

5/8

1

117

JTAS10-117

Spring Pin

M6x50

1

118

JTAS10-118

Key

1/4x1/4x2-5/16

1

119

TS-0680051

Flat Washer

7/16

2

120

TS-0091031

Hex Cap Screw

7/16-14x1

2

121

JTAS10DX-121

Shaft

1

122

JTAS10-122

Motor Bracket

1

123

JTAS10-123

Pin

1

124

JTAS10-124

Spring Clip

2

125

JTAS10L-125N

Poly V-Belt

260J

1

126

JTAS10DX-126

Motor Mounting Bracket

1

127

JTAS10-127N

Motor Pulley

1

128

TS-0680031

Flat Washer

5/16

10

129

TS-0720081

Lock Washer

5/16

9

130

TS-0081031

Hex Cap Screw

5/16-18x3/4

4

131

JTAS10DX-131N

Motor

3HP, 1Ph, 230V only

1

JTAS10DX-131C

Motor

5HP, 1Ph, 230V only

1

JTAS10DX-131A

Motor

5HP, 3Ph, 230/460V

1

JTAS10DX-131CS

Centrifugal Switch Assembly (not shown)

1

JTAS10-131D

Fan Cover (not shown)

1

JTAS10-131F

Motor Fan (not shown)

1

C-600125

Start Capacitor (not shown)

3HP, 1Ph motor

1

C-040250

Run Capacitor (not shown)

3HP, 1Ph motor

1

JTAS10-1315B

Start Capacitor (not shown)

5HP, 1Ph motor

1

JTAS10-1315A

Run Capacitor (not shown)

5HP, 1Ph motor

1

132

TS-0209071

Socket Head Cap Screw

3/8-16x1-1/2

6

133

JTAS10DX-133

Rear Trunnion Bracket

1

134

TS-0561031

Hex Nut

3/8-16

5

135

TS-0209051

Socket Head Cap Screw

3/8-16x1

4

136

JTAS10-136

Spring Pin

M8x25

4

137

TS-0561081

Hex Nut

3/4-10

1

138

JTAS10-138

Fiber Washer

4

139

JTAS10DX-139

Rear Trunnion

1

140

JTAS10-140

Rear Bushing

2

140-1

JTAS10DX-140

Front Bushing

1

141

JTAS10DX-141

Yoke

1

142

TS-0270011

Socket Set Screw

5/16-18x1/4

4

143

JTAS10-143

Collar

2

144

JTAS10DX-144

Shaft

1

145

JTAS10-145

Spring Pin

M5x30

2

146

JTAS10-146

Worm (Left thread)

2

146-1

JTAS10DX-146

Worm (Right thread)

1

147

JTAS10-147

Lock Pin

4

148

JTAS10-148

Key

M5x35

2

149

TS-0208041

Socket Head Cap Screw

5/16-18x3/4”

4

150

JTAS10L-150N

Dust Deflector

1

151

JTAS10L-151N

Hose Clamp

2

152

JTAS10DX-152

Front Trunnion

1

JTAS10DX-TA

Trunnion Assembly (#113, 135, 136, 139 through 141, and 152)

1

153

TS-0051021

Hex Cap Screw

5/16-18x5/8

2

154

TS-0561021

Hex Nut

5/16-18

2

155

JTAS10-155A

Lock Knob

2

156

JTAS10-156

Fiber Washer

2

157

TS-0208061

Socket Head Cap Screw

5/16-18x1

2

158

JTAS10DX-158

Front Trunnion Bracket

1

159

JTAS10-159

Hand Wheel Handle

2

160

JTAS10-160

Hand Wheel

2

161

JTAS10-161

Shield Plate

1

162

TS-0813022

Round Head Screw

1/4-20x3/8

1

163

JTAS10-163

Pointer

1

164

JTAS10-164

Pointer Bracket

1

165

TS-081C102

Pan Head Screw

#10-24x2

2

166

JTAS10DX-166

Guide Block

1

167

TS-0680041

Flat Washer

3/8

1

169

JTAS10DX-169

Tilt Shaft

1

170

JTAS10L-170

Wrench

1

171

JTAS10L-171

Hose

700mm

1

172

JTAS10L-172

Plate

1

173

TS-0208041

Socket Head Cap Screw

5/16-18x3/4

3

174

JTAS10L-174

Chip Plate

1

175

TS-0680011

Flat Washer

3/16

3

176

TS-0720051

Lock Washer

#10

3

177

JTAS10L-177

Hex Cap Bolt

#10-24x3/8

3

178

JTAS10L-178

Special Screw

1

179

JTAS10L-179A

Arbor Lock Insert Assembly (#179-1through 179-5)

1

179-1

JTAS10L-179-1

Arbor Lock Insert

Ø8

1

179-2

JTAS10L-179-2

Spring

1

179-3

JTAS10L-179-3

Insert Bracket

1

179-4

TS-1502051

Socket Head Cap Screw

M5 x 20

2

179-5

TS-1521041

Socket Set Screw

M4 x 10

1

180

JTAS10L-180

Spring

1

181

TS-0640071

Nylon Insert Lock Nut

1/4-20

3

182

JTAS10L-182N

Spacer

2

183

JTAS10L-183

Guide Bracket

1

184

TS-0245051

Flat Head Socket Screw

1/4-20x1

2

185

JTAS10L-185

Special Screw

1

186

JTAS10L-186

Extension Support Plate

1

187

TS-1541021

Nylon Insert Lock Nut

M6

1

188

JTAS10L-188

Plate

1

189

JTAS10L-189A

Riving Knife Extension Plate

1

190

TS-1513021

Flat Head Socket Screw

M5x12

2

191

JTAS10L-191

Clamping Block

1

192

JTAS10L-192

Spring

1

193

JTAS10L-193

Clamping Block

1

194

TS-1514031

Flat Head Socket Screw

M6X20

2

195

JTAS10L-195

Locking Handle

1

196

TS-1541031

Nylon Insert Lock Nut

M8

1

197

JTAS10L-197

Spring Shim Ring

1

198

JTAS10L-198

C-Ring

S52

1
