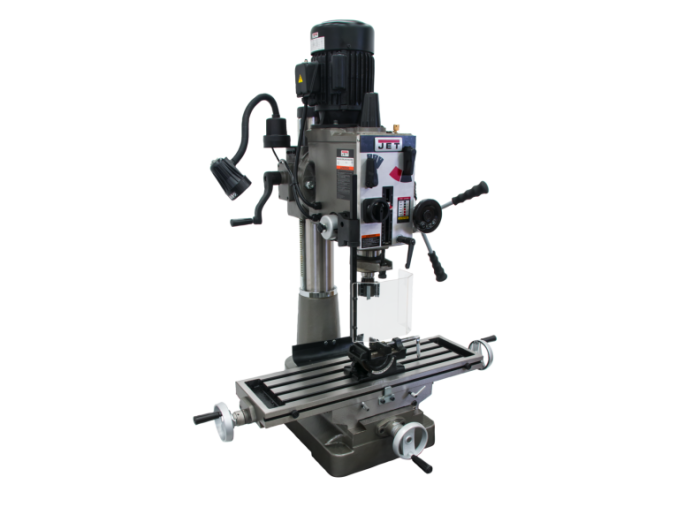

Jet JMD-40GH Geared Head Mill/Drill JT9-351040

Features

• Calibrated fine down feed built in
• CSA/CUS Certified
• Easy to read internal depth gauge
• Full power to the cutting tools through 6 speed geared head
• Heavy-duty design allows for a variety of precision drilling applications
• Mill Drill Stand, p/n 350045, shown in some images, is optional
• Milling table allows for movement
• R8 spindle allows use of all mill tooling
• Rapid spindle speed changes through quick-select gear shift levers

Specifications

• Stock Number: JT9-351040
• Column Diameter (In.): 4-1/2
• Face Mill Capacity (In.): 4
• Max Distance Spindle to Table (In.): 15-3/4
• Model Number: JMD-40GH
• Motor (HP): 1-1/2HP, 115/230V, 1Ph
• Number of Spindle Speeds: 6
• Overall Dimensions (L x W x H) (In.): 28 x 39-1/4 x 42-1/2
• Prop 65: Cancer and Reproductive Harm
• Quill Diameter (In.): 3
• Range of Spindle Speeds (RPM): 65, 130, 220, 480, 925, 1550rpm
• Spindle Taper (In. x TPI): R-8
• Spindle Travel (In.): 5
• Swing (In.): 21
• Table Longitudinal Travel (In.): 20-1/2
• Warranty: 2 Year
• Gross Weight: 694.0
• Net weight: 628.0
