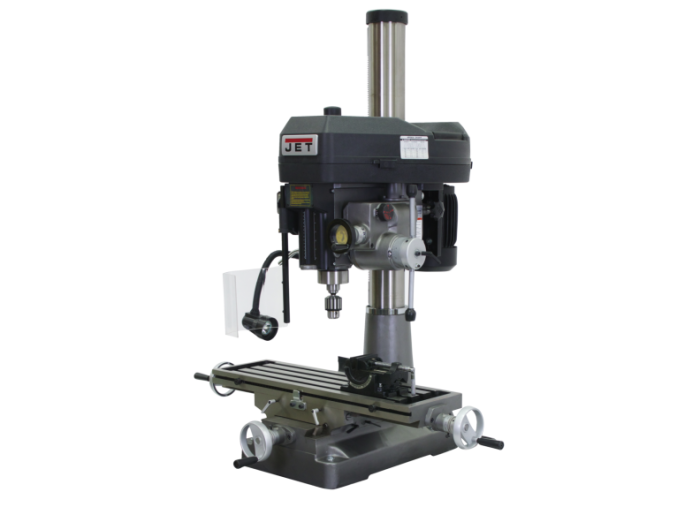

Jet JMD-18PFN Mill/Drill With NEWALL DP700 DRO JT9-350128

Specifications

• Stock Number: JT9-350128
• Base Dimensions (In.): 15-3/4 x 23-3/4
• Column Diameter (In.): 4-1/2
• Face Mill Capacity (In.): 3
• Max Distance Spindle to Table (In.): 28
• Model Number: JMD-18PFN
• Motor (HP): 2 HP,115/230V, 1 Ph, Prewired 115V
• Number of Spindle Speeds: 12
• Overall Dimensions (L x W x H) (In.): 47 x 40 x 51
• Powerfeed: Downfeed
• Prop 65: Cancer and Reproductive Harm
• Quill Diameter (In.): 3
• Quill Down Feed Rates (IPR): 0.0047, 0.007, 0.001
• Range of Spindle Speeds (RPM): 150 - 3,000
• Spindle Taper (In. x TPI): R-8
• Spindle Travel Auto (In.): 4-1/4
• Spindle Travel (In.): 5
• Swing (In.): 15-7/8
• T-Slot Centers (In.): 1-13/16
• T-Slots Number and Size (In.): 4 and 5/8
• Table Longitudinal Travel (In.): 20-1/2
• Table Size (L x W) (In.): 9-1/2 x 31-3/4
• Warranty: 2 Year
• Work Table Weight Capacity (Lbs.): 400
• Gross Weight: 944.0
• Net weight: 944.0

Features

• 1/2” Drill chuck, chuck arbor
• 360° head swivel
• Adjustable carbide facemill
• Base taper allows for easier clean up
• Easy to read internal depth gauge
• Heavy-duty power downfeed with manual feed (JMD-18PFN)
• Mill Drill Stand, p/n 320020, shown in some images, is optional
• One-piece cast iron column for added support
• Positive quick-stop knob and easy to read internal depth gauge
• UL Listed
