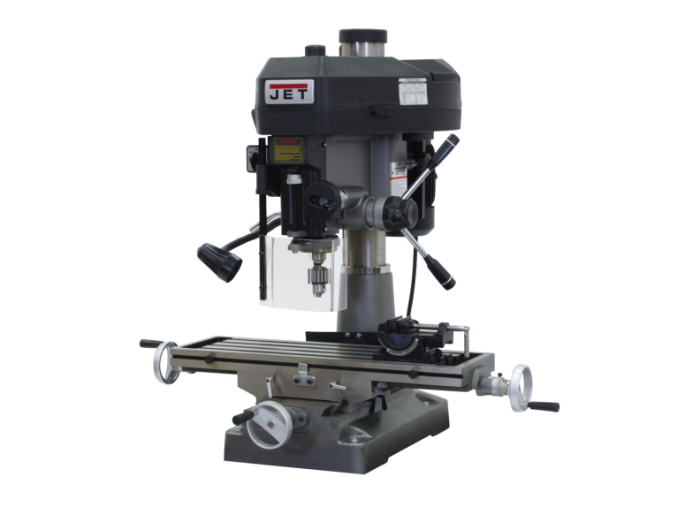

Jet JMD-18 Mill/Drill With Newall DP500 DRO and X-Axis Table Powerfeed JT9-350134
Mill drills are a lighter alternative to a milling machine. These combine a belt driven drill press with the dual coordinate abilities of the milling machine's table for flexibility and efficiency. A locking collet prevents the cutting tool from falling away from the spindle when lateral forces are experienced against the bit. Although light in construction, the JMD Milling Drilling Machines possess the advantages of space-saving versatility, affordability and light machining capability.
Features
- 1/2” Drill chuck, chuck arbor
- 360° head swivel
- Adjustable carbide facemill
- Base taper allows for easier clean up
- Easy to read internal depth gauge
- Forward and Reverse Switch
- Mill Drill Stand, p/n 320020, shown in some images, is optional
- One-piece cast iron column for added support
- Positive quick-stop knob and easy to read internal depth gauge
- UL Listed
Specifications
- Stock Number: JT9-350134
- Face Mill Capacity (In.): 3
- Max Distance Spindle to Table (In.): 17-1/2
- Model Number: JMD-18
- Motor (HP): 2 HP, 115/230V, 1Ph
- Number of Spindle Speeds: 12
- Overall Dimensions (L x W x H) (In.): 47 x 40 x 51
- Prop 65: Cancer and Reproductive Harm
- Quill Diameter (In.): 3
- Range of Spindle Speeds (RPM): 150 - 3,000
- Spindle Taper (In. x TPI): R-8
- Spindle Travel (In.): 5
- T-Slot Centers (In.): 1-13/16
- T-Slots Number and Size (In.): 4 and 5/8
- Table Longitudinal Travel (In.): 20-1/2
- Table Size (L x W) (In.): 9-1/2 x 32-1/4
- Warranty: 2 Year
- Work Table Weight Capacity (Lbs.): 400
- Gross Weight: 660.0
- Net weight: 660.0
| Brand | Jet |
|---|---|
| Warranty | 2 Year |
