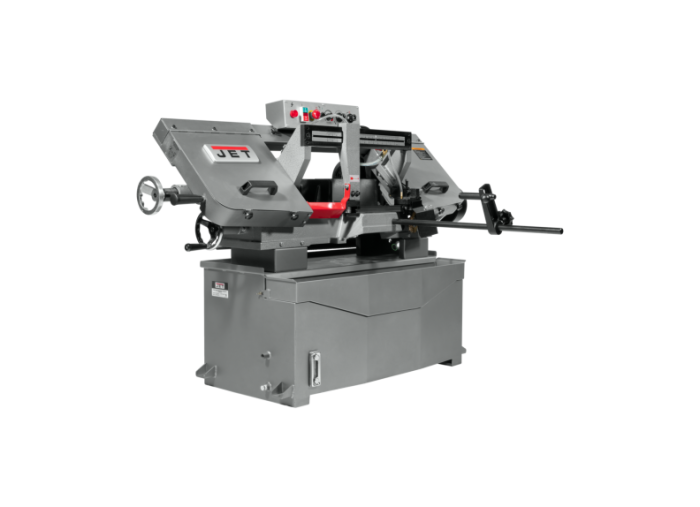

Jet HBS-916EVS, 9" x 16" EVS (Electronic Variable Speed) Horizontal Bandsaw JT9-424469
Electronic variable speed, oversized removable chip tray, large handwheel, built-in gauge, blade guides and quick-positioning vise that swivels to 45°are but a few of the features that make this JET Horizontal Bandsaw among the best when compared to the competition. Efficiency, precision and functionality combined to deliver superior results time after time.
Features
- Adjustable Material Stop
- Built-in, self-propelled blade brush extends blade life
- Carbide blade guides feature parallel double-row ball bearing support
- Coolant is distributed through the blade guides
- Electronically controlled blade speed from 82 - 330 SFPM
- Fully adjustable hydraulic downfeed with separate on/off control valve
- Standard coolant system with coolant is distributed through the blade guides
Specifications
- Stock Number: JT9-424469
- Amperage: 5
- Amperage Draw @ 115V 1Ph: 5
- Bed Height (In.): 23.5
- Blade Length (In.): 119-1/2
- Blade Speed (SFPM): EVS 82 - 330
- Blade Speeds (SFPM): (EVS ) 82-330
- Blade Wheel Diameter (In.): 13
- Cutting Capacity (W x D) (In.): 9 x 16
- Drive: EVS
- Model Number: HBS-916EVS
- Motor (HP): 1-1/2
- Overall Dimensions (L x W x H) (In.): 67 x 25 x 46-1/4
- Prewired Voltage (V.): 115
- Prop 65: None
- Rectangle at 45 Degrees (In.): 9 x 6-1/8
- Rectangle at 90 Degrees (In.): 8-1/2 x 14 and 2 x 16
- Round at 45 Degrees (In.): 6-1/8
- Round at 90 Degrees (In.): 9
- Shipping Dimensions (L x W x H) (In.): 67 x 25 x 46-1/4
- Shipping Weight (Lbs.): 818
- Vise Swivels (Deg.): 45°
- Warranty: 2 Year
- Gross Weight: 704.0
- Net weight: 625.0
- Overall Assembled (Bow Raised) (L x W x H): 65 x 25 x 67
| Brand | Jet |
|---|---|
| Tool Type | Metal |
| Power | Single Phase |
