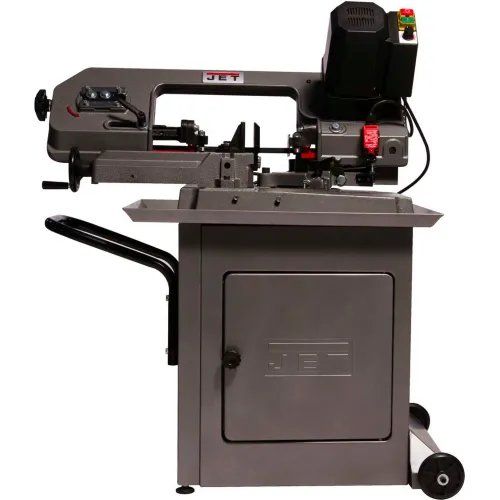

Jet HBS-56MVS, Variable Speed, Mitering 5" x 6" Horizontal Bandsaw, .5HP 115V JT9-414558
This JET Variable Speed, Mitering Bandsaw packs the features in a small package. The exclusive 5x6 Portable Variable Speed Mitering Bandsaw includes a newly designed motor with a 3-step gear transmission for unprecedented torque output. The versatile heavy-duty casted head swivels for a maximum cut at 45° & 60° allowing precision cuts without the hassle of moving the material. CSA/CUS Certified.
Features
- Front legs feature leveling pads
- Fully adjustable ball bearing blade guides
- Hardened Ferrous 82-130 SFPM
- Quick speed changes with the turn of a dial, no more belt changes
- Variable Speed gives you the ability to cut various material
- Wheels come standard for ease of movement around your shop
Specifications
- Stock Number: JT9-414558
- Amperage: 3.8
- Amperage Draw @ 115V 1Ph: 3.8
- Bed Height (In.): 28
- Blade Speed (SFPM): Variable 80-230
- Blade Speeds (SFPM): Variable, 80-230
- Blade Wheel Diameter (In.): 7-3/8
- Electrics: 1/2HP, 115V/ 1Ph Prewired 115V
- Model Number: HBS-56MVS
- Motor (HP): 1/2 HP, 115V, Single Phase
- Overall Assembled (Bow Lowered) (L x W x H): 38.58 x 20.47 x 47.3
- Overall Dimensions (L x W x H) (In.): 38.58 x 20.47 x 43.3
- Prewired Voltage (V.): 115
- Prop 65: Cancer and Reproductive Harm
- Rectangle at 45 Degrees (In.): 3-3/4 x 2-1/3
- Rectangle at 60 Degrees (In.): 1-1/4 x 1-3/4 , 5 x 1-3/4
- Rectangle at 90 Degrees (In.): 5 x 6 , 2 x 6
- Round at 45 Degrees (In.): 3-3/4
- Round at 90 Degrees (In.): 5
- Shipping Dimensions (L x W x H) (In.): 35.43 x 17.5 x 21.65
- Shipping Weight (Lbs.): 147
- Vise Swivels (Deg.): 0 - 60
- Warranty: 2 Year
- Gross Weight: 176.0
- Net weight: 172.0
- Blade Size (In.): 1/2 x .025 x 64-1/2
| Brand | Jet |
|---|---|
| Tool Type | Metal |
Write Your Own Review
Download information Manual
