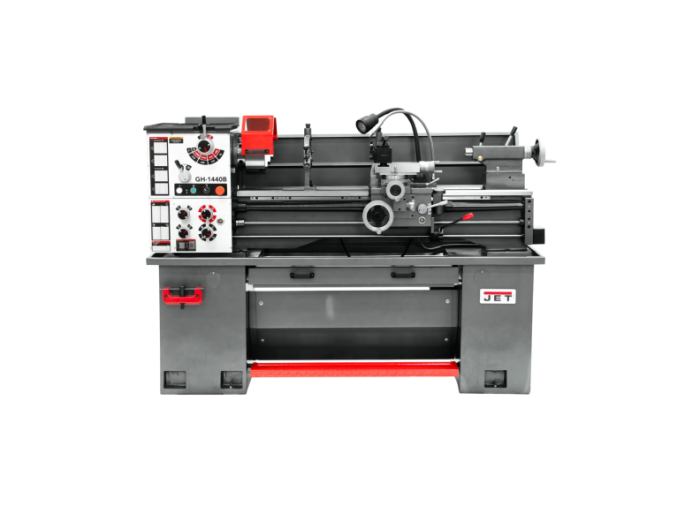

Jet GH-1440B with Taper Attachment JT9-323442

Specifications

• Stock Number: JT9-323442
• Carriage Travel (In.): 37-2/5
• Compound Slide Travel (In.): 3-1/2
• Cross Slide Travel (In.): 7
• Length of Gap (In.): 8
• Max Tool Size (In.): 4/5 x 4/5
• Model Number: GH-1440B
• Motor (HP): 2 HP, 230V, Single Phase
• Number of Inch Threads: 34.0000
• Number of Longitudinal and Cross Feed Rates: 32/32
• Number of Metric Threads: 26.0000
• Number of Spindle Speeds: 8
• Overall Dimensions (L x W x H) (In.): 76-13/32 x 29-29/32 x 59-13/16
• Prop 65: Cancer and Reproductive Harm
• Range of Cross Feeds (IPR): 0.007 -0.0187
• Range of Inch Threads (TPI): 4-56
• Range of Longitudinal Feeds (IPR): 0.002 -0.0548
• Range of Metric Threads: 0.4-7
• Range of Spindle Speeds (RPM): 70-1900
• Spindle Bore (In.): 2
• Spindle Mount: D1-5
• Spindle Taper with Sleeve: MT6
• Steady Rest Capacity (In.): 0.31-2.95
• Swing Over Bed (In.): 14
• Swing Over Cross Slide (In.): 8
• Swing Through Gap (In.): 20
• Tailstock Spindle Travel (In.): 4
• Taper in Tailstock Spindle: MT4
• Warranty: 2 Year
• Width of Bed (In.): 7.32
• Gross Weight: 1791.0
• Net weight: 1610.0

Features

• Compound and cross slide have backlash adjustment
• Emergency stop within easy reach of the Operator
• Enclosed gearbox design provides smooth, quiet operation
• Gearbox gives wide range of inch & metric threading & feed capabilities with few gear changes
• Spindle Spider available for ease of turning Gun barrels
• Standard Accessories
• Steady Rest with Roller Bearings
• Tailstock may be offset for turning taper
