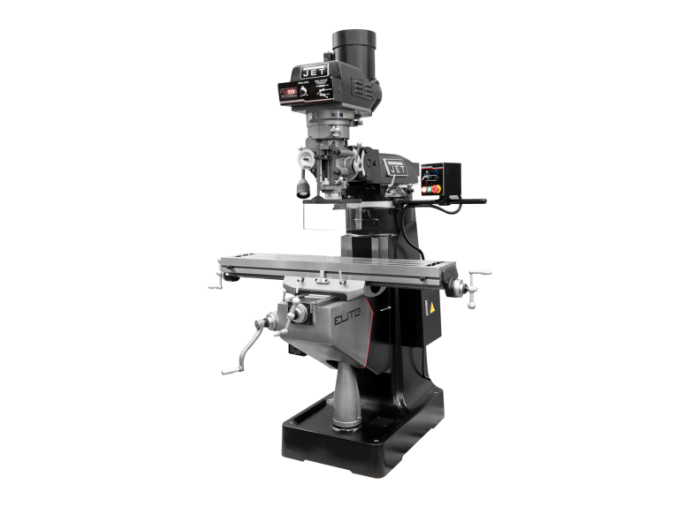

Jet EVS-949 Mill with 3-Axis Newall DP700 (Quill) DRO and X Y Z-Axis JET Powerfeeds JT9-894363

Features

• Ball bearing support of the motor shaft ensures proper loading, support, and alignment for quiet, accurate operation at any speed
• Heat treated and polished lead screws are supported by thrust bearings ensuring smooth, incremental movements of the table under load
• Seamless, one-piece, steel quill is induction hardened and chromed for increased strength and precision ground for greater accuracy
• Stainless steel Y-Axis way cover provides extra years of protection over the standard sheet metal cover
• The mounted control box houses major mill functions as well as an emergency stop button
• The table and saddle backlash is controlled by an advanced double nut design that eliminates end-play for precisely controlled lateral movements
• Variable speed pulleys are ground and multiplane dynamically balanced, reducing vibration and ensuring smooth speed transitions

Specifications

• Stock Number: JT9-894363
• Amperage Draw @ 230V 3Ph: 18
• Collet Capacity: 1/8 - 7/8
• Distance Spindle to Column (Max.) (In.): 21-2/5
• Max Distance Spindle to Table (In.): 18-3/4
• Model Number: ETM-949EVS
• Motor (HP): 3 HP, 230V, 3 Ph
• Number of Axis: 3 (Quill)
• Overall Dimensions (L x W x H) (In.): 68 x 63 x 84
• Prop 65: Cancer
• Quill Diameter (In.): 3-3/8
• Quill Down Feed Rates (IPR): 0.0015 - 0.003 - 0.006
• Range of Spindle Speeds (RPM): 60 - 5,000
• Spindle Taper (In. x TPI): R-8
• Spindle Travel (In.): 5
• Style (Type): Variable Speed
• T-Slot Centers (In.): 2-1/2
• Table Cross Travel (In.): 12
• Table Longitudinal Travel (In.): 36
• Table Size (L x W) (In.): 9 x 49
• Travel of Knee (In.): 16
• Travel of Ram (In.): 14
• Warranty: 3 Year Elite
• Work Table Weight Capacity (Lbs.): 550
• Gross Weight: 2450.0
• Net weight: 2200.0
