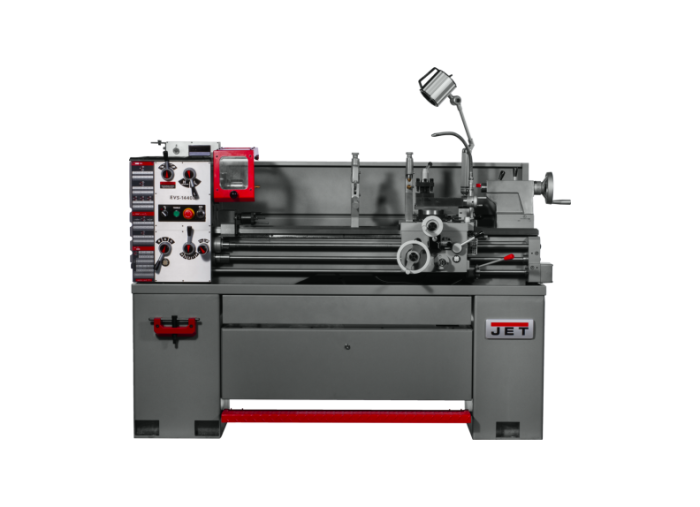

Jet EVS-1440 Electronic Variable Speed lathe with Newall DP700 DRO3HP JT9-311448
The EVS-1440B is engineered to maximize your shop’s output. The D1 4 Spindle is precision ground for accuracy and supported by class 7 tapered roller bearings capable of a run out maximum of .0004’’. The spindle also features an apron-mounted actuation control and jog button for easy gear engagement and spindle inching. The two-speed gearbox allows operators to easily work at low speeds from 40 to 365 RPM, and at high speeds from 220 to 2,000 RPM. Additionally, the tailstock may be offset for turning taper. Meehanite castings retain their tolerance and remain rigid over many years of machining.
Specifications
- Stock Number: JT9-311448
- Compound Slide Travel (In.): 3-1/2
- Cross Slide Travel (In.): 7
- Length of Gap (In.): 9-1/2
- Max Tool Size (In.): 3/4 x 3/4
- Model Number: EVS-1440B
- Motor (HP): 3HP, 230V, 3Ph
- Number of Inch Threads: 34.0000
- Number of Longitudinal and Cross Feed Rates: 25
- Number of Metric Threads: 34.0000
- Overall Dimensions (L x W x H) (In.): 68.5 x 28.3 x 50
- Prop 65: None
- Range of Inch Threads (TPI): 2-56
- Range of Longitudinal Feeds (IPR): 0.0016-0.0460
- Range of Metric Threads: 0.5-12
- Range of Spindle Speeds (RPM): 40-2000
- Spindle Bore (In.): 1-1/2
- Spindle Mount: D1-4
- Spindle Taper with Sleeve: MT-5
- Steady Rest Capacity (In.): 0.23-0.61 Copper Shaft ( Standard) 0.20-2.36 Bearing Roller(OP)
- Swing Over Bed (In.): 14
- Swing Over Cross Slide (In.): 9-1/16
- Tailstock Spindle Travel (In.): 6-1/8
- Taper in Tailstock Spindle: MT-3
- Warranty: 2 Year
- Width of Bed (In.): 7.48
- Gross Weight: 1584.0
- Net weight: 1320.0
Features
- Compound and cross slide have backlash elimination
- Electronic Chuck Key Docking Station
- Front Removable Chip Tray
- Full Length Splash Guard
- Independent lead screw and feed rod
- Integrated locking tool storage cabinet in the stand
- LED RPM readout allows for precise turning speeds
- Safety on/off switch
- Treading Dial Indicator
- V-Way bed design is induction hardened and ground
| Brand | Jet |
|---|---|
| Warranty | 2 Year |
| Tool Type | Metal |
