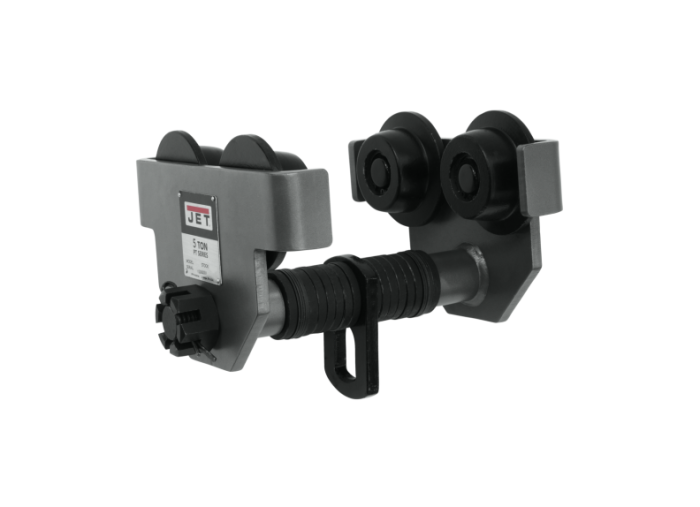

JETAA® PT Series heavy duty Manual Trolleys are available in capacities from 1/2 ton to 10 Tons. Built with heavy gauge steel for increased durability, the large steel wheels and thicker bearings provide smooth movement on a variety of beams. The built in bumper guards increase user safety and extend the life of the trolley. Each JETAA® Manual Trolley conforms to OSHA regulations, and ANSI / ASME standards.
Features
- Built-in bumper guards on the side plates increase safety and extend trolley life
- Complies with OSHA Regulations, ANSI / ASME B30.11 and B30.17 standards
- Easily adjustable to wide-flange H-beams, standard I-beams, or curved track with the included spacer washers
- Hardened large steel wheels and thicker double sealed lubricated ball bearings provide smooth movement
- Welded heavy gauge steel frame and powder coat finish provide maximum durability and protection
Specifications
- Stock Number: JT9-252050
- Capacity (Lbs.): 11000
- Hook Mount Headroom (In.): 8-5/8
- Load Capacity (Tons): 5
- Maximum Beam Flange Width (In.): 8
- Minimum Beam Curve Radius (In.): 55
- Minimum Beam Flange Width (In.): 4
- Model Number: 5-PT
- Prop 65: Cancer and Reproductive Harm
- Warranty: 2 Year
- Wheel Diameter (In.): 8-5/8
- Gross Weight: 124.0
- Net weight: 124.0
- Max. Hook Size (W/in.): 2-1/3
- Minimum Beam Height (In.): 4-5/8
- Overall Dimensions (L x W x H / in.): 15 x 15-3/4 x 10
| Brand | Jet |
|---|---|
| Warranty | 2 Year |
Write Your Own Review
Download information Manual
