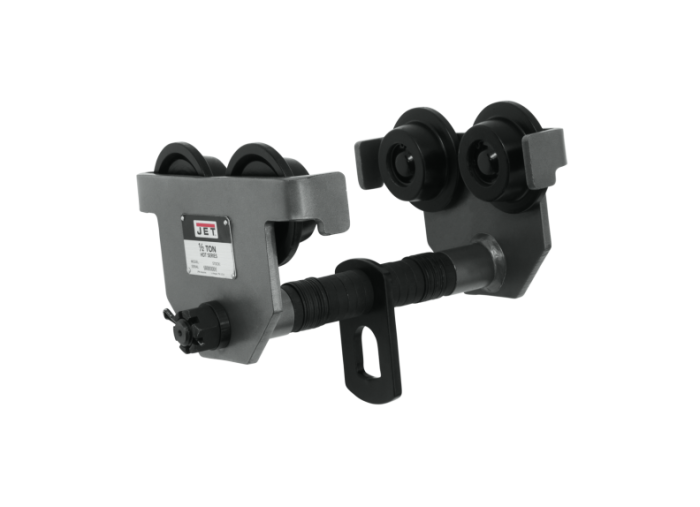

JETAA® HDT Series Manual Trolleys are available in capacities from 1/2 ton to 5 Tons. They are designed for low maintenance, trouble free use on wide flange H-beams, standard I-beams or curved track. Each JETAA® Manual Trolley conforms to OSHA regulations, and ANSI / ASME standards.
Features
- Built-in bumper guards on the side plates increase safety and extend trolley life
- Complies with OSHA Regulations, ANSI / ASME B30.11 and B30.17 standards
- Easily adjustable to wide-flange H-beams, standard I-beams, or curved track with the included spacer washers
- Hardened steel wheels and double sealed lubricated ball bearings provide smooth movement
- Welded all-steel frame and powder coat finish provide maximum durability and protection
Specifications
- Stock Number: JT9-262005
- Capacity (Lbs.): 1100
- Hook Mount Headroom (In.): 4
- Load Capacity (Tons): 1/2
- Maximum Beam Flange Width (In.): 8
- Minimum Beam Curve Radius (In.): 35
- Minimum Beam Flange Width (In.): 2-1/2 - 8
- Model Number: 1/2-HDT
- Prop 65: Cancer and Reproductive Harm
- Warranty: 2 Year
- Wheel Diameter (In.): 2-13/16
- Gross Weight: 12.0
- Net weight: 11.0
- Max. Hook Size (W/in.): 1-1/4
- Minimum Beam Height (In.): 3
- Overall Dimensions (L x W x H / in.): 7-3/8 x 11-13/16 x 4-5/8
| Brand | Jet |
|---|---|
| Warranty | 2 Year |
