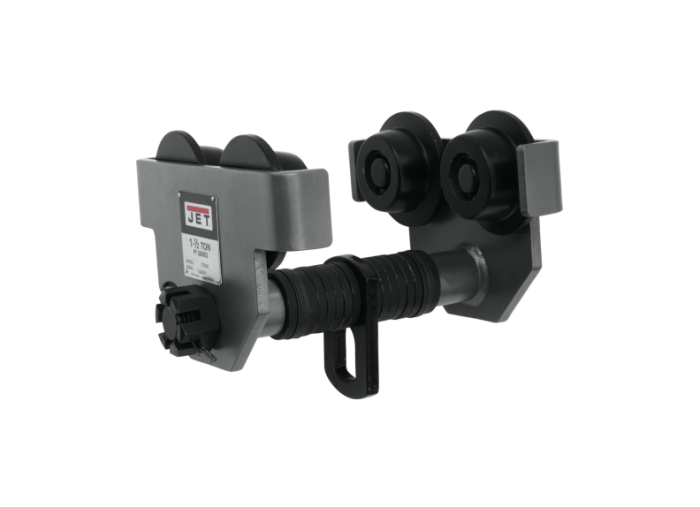

JETAA® PT Series heavy duty Manual Trolleys are available in capacities from 1/2 ton to 10 Tons. Built with heavy gauge steel for increased durability, the large steel wheels and thicker bearings provide smooth movement on a variety of beams. The built in bumper guards increase user safety and extend the life of the trolley. Each JETAA® Manual Trolley conforms to OSHA regulations, and ANSI / ASME standards.
Features
- Built-in bumper guards on the side plates increase safety and extend trolley life
- Complies with OSHA Regulations, ANSI / ASME B30.11 and B30.17 standards
- Easily adjustable to wide-flange H-beams, standard I-beams, or curved track with the included spacer washers
- Hardened large steel wheels and thicker double sealed lubricated ball bearings provide smooth movement
- Welded heavy gauge steel frame and powder coat finish provide maximum durability and protection
Specifications
- Stock Number: JT9-252015
- Capacity (Lbs.): 3300
- Hook Mount Headroom (In.): 5-5/7
- Load Capacity (Tons): 1-1/2
- Maximum Beam Flange Width (In.): 8
- Minimum Beam Curve Radius (In.): 43
- Minimum Beam Flange Width (In.): 3-1/4 - 8
- Minimum Beam Height (In.): 4
- Model Number: 1-1/2-PT
- Prop 65: Cancer and Reproductive Harm
- Warranty: 2 Year
- Wheel Diameter (In.): 3-1/3
- Gross Weight: 41.3
- Net weight: 41.3
- Max. Hook Size (W/in.): 1-1/3
- Minimum Beam Height (In.): 4
- Overall Dimensions (L x W x H / in.): 11 x 13-2/9 x 6-3/8
| Brand | Jet |
|---|---|
| Warranty | 2 Year |
