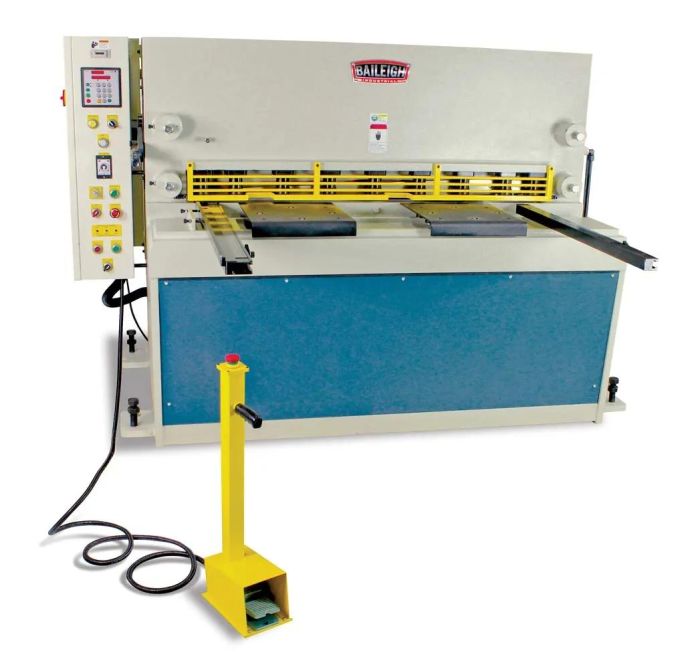

Baileigh SH-5203-HD-NC 220V 3Phase Heavy Duty Hydraulic Shear. 52" Length 3 (1/4") Gauge Mild Steel Capacity BA9-1007095

Features

• Eight hydraulic hold downs provide 3.2 tons of pressure each, ensuring the sheet of metal doesn't lift while being sheared to the required length
• Shadow light stretches the entire length of the web width for proper placement of the beginning of the cut, for those one-off shearing requirements
• Heavy-duty hydraulic shear comes standard with a simple to operate control panel including the rake adjustment, jog/run/stop controls, program pad for the backgauge, and production counter
• High carbon chromium blades that have several edges, so as the blades wear, they can be flipped several times before re-sharpening is required
• Simple remote operator controls pendant house an E-Stop button and foot pedal controls
• Front and rear product supports, a roller infeed table, and side guides, easily maneuver the plate steel for each cut
• Programmable quick change backgauge rides on a screw ball rail system that has a positioning encoder for accuracy
• Metal Cutting Shear includes front and rear product supports, a roller in feed table, and side guides to easily maneuver the plate steel for the next cut
• Programmable quick change back gauge rides on a screw ball rail system that has a positioning encoder for accuracy
