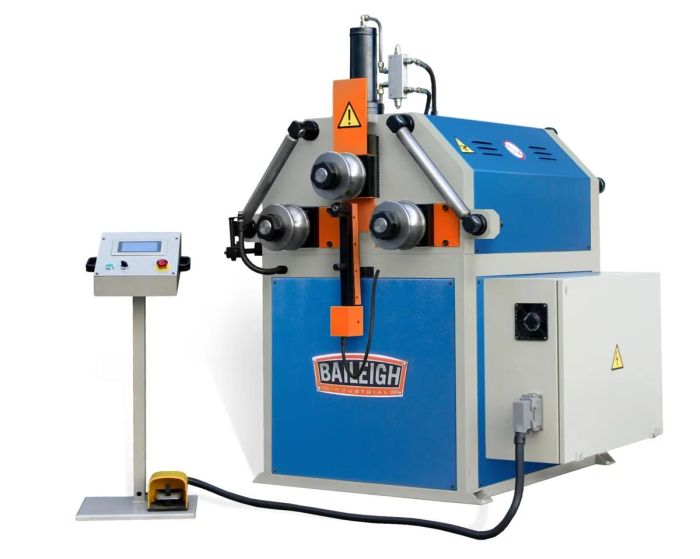

Baileigh R-CNC80 220V 3Phase Computer Controlled Hydraulic Bending Machine, includes Arc Meter BA9-1006764

Features

• Runs on 220-volt 3-phase power and handles a capacity of up to 4" round tube and 2.5AA schedule 40 pipe
• Double-pinch design includes 3 driven, variable-speed rolls: 4 speeds for top roll, 2 speeds for bottom rolls
• You can specify progressive (moving profile) or direct (profile stopped) top roll movement
• Use the machine vertical position or lay it on its back in horizontal mode to bend long material and prevent large parts from swinging overhead
• X-axis encoder lets you program the desired material length. The machine will automatically feed to the appropriate distance
• X-axis coordinates with Y-axis to facilitate smooth transitions between bends
• Internal memory holds 40 programs of up to 24 parts or segments per program
• Quickly specify any of 75 profile calibrations with handheld digital measuring console
• Comes standard with set of tooling for rolling square tube, flat bar, solid material, angle iron, and more applications
• Electro-welded steel framework enables the machine to roll pipe at full capacity for years without flexing or buckling
