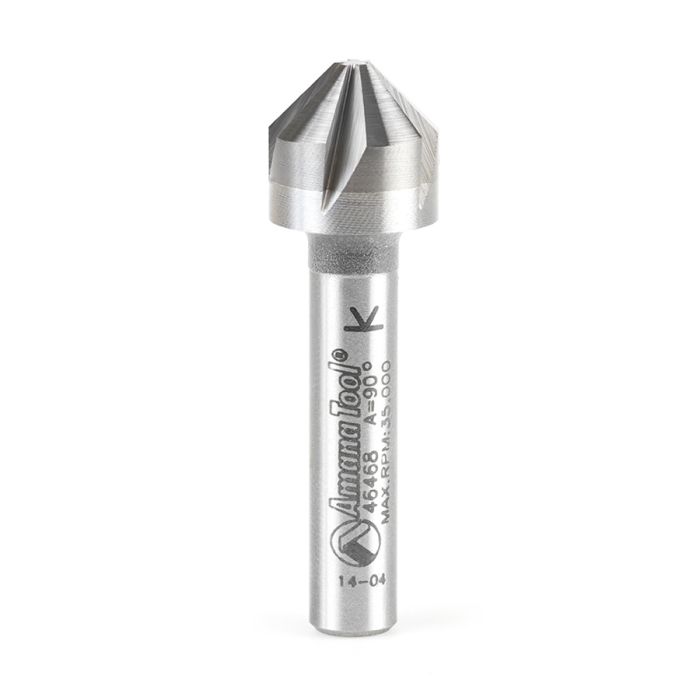

Amana 1/2" DIA 90D COUNTERSINK 46468

5 flute solid carbide head on brazed steel shank offers long-lasting durability.

Designed for making 90 degree countersinks and chamfering.

These bits make it possible to chamfer edges, holes and contours with a “contour” or “bore” CNC operation while still allowing a sufficient lead-in distance.

The 46467 utilizes a 1/32" diameter tip width, making cuts into the tightest corners and smallest details achievable.

Excellent for:

CNC Countersink:

Drilling countersinks with these bits on the CNC machine is a great way to save time and achieve consistent results.

With the adjustable depth drill bit you can adjust them for whatever size material you’re working with. They are best used with a drilling toolpath, utilizing the peck drill option at 0.25" per pass with a 0.125" retract height.

For best results run at 3,000 RPM with a 30 IPM (Inches Per Minute) plunge rate. No feed rate needs to be set with these as they only move up and down with the Z axis, not side to side. If your software doesn’t allow a 0 feed rate, you can enter 1 IPM (Inch Per Minute) in the feed rate as a placeholder.

For countersinks with 1/4" round shank, use 1/4" spring collet.

For countersinks with 5/16" round shank, use 7–8mm spring collet.

For countersinks with 3/8" round shank, use 9–10mm spring collet.
