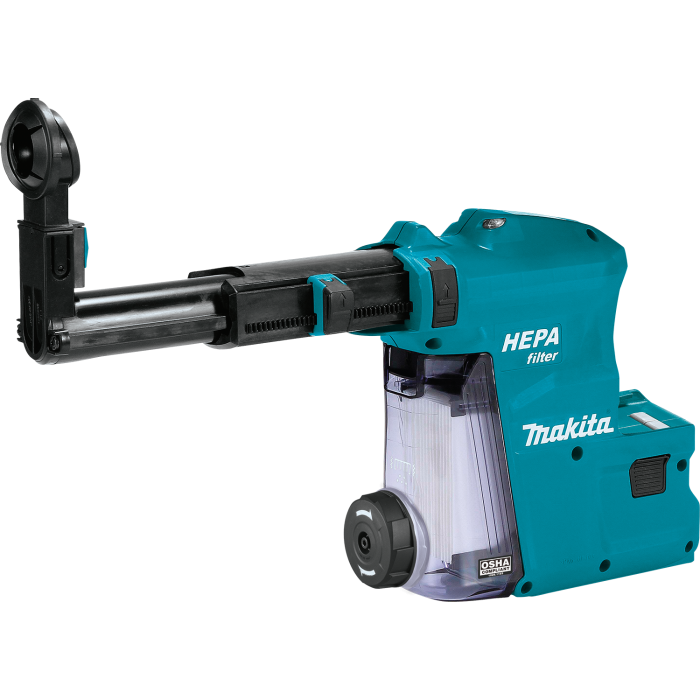

The Dust Extractor Attachment with HEPA Filter (model DX09) is for use with the 18V LXT® Lithium-Ion Cordless Brushless 1" Rotary Hammer (XRH11, sold separately). The DX09 Dust Collection Vacuum Attachment features a HEPA filter engineered to capture 99.97% of dust particles (size .3 microns and larger) for improved dust collection and OSHA Table 1 compliance. The Dust Extractor Attachment is powered by a separate motor allowing the rotary hammer to consistently maintain peak drilling performance.
Features:
- OSHA Table 1 compliant on-board dust extractor provides a filter cleaning mechanism designed to help maintain optimum suction efficiency
- Extractor is powered by separate motor allowing the rotary hammer to consistently maintain peak drilling performance
- Captures concrete dust during drilling; activated by the tool and provides a 3-second delay to help capture remaining dust
- Efficient HEPA filtration system captures 99.97% of particulates .3 microns and larger
- Two stage length extension allows drilling up to 3-1/2" and maximum 7-1/2" deep; up to 1-1/8" diameter holes
- Depth stop adjustment button allows for accurate drilling depth
- Transparent dust container provides needed visibility in determining container fullness
- Built-in dual L.E.D. light with an independent on/off illuminates the work area
- Compatible with Makita 18V X2 Rotary Hammer model XRH11
Specifications:
- Auto shut off time: After 2 seconds
- HEPA filter: Yes
- Equipped Filter Efficiency: 99.97% of .3 microns
- Adjustable Depth Stops: Yes
- Maximum Hole Diameter (in.): 1.125"
- Max. Hole Depth: 7-1/2"
- Container Hole Count Capacity: 25 holes of dimension 5/8"x2"
- Filter Life (Approx. container fillings): 200
- Container Capacity: 10.14 oz.
- Overall Length: 23-1/4"
- Net Weight: 3.2 lbs.
- Shelf Pack Qty: 0
- Type (Concrete & Masonry Accessories): Dust Extraction Accessories
- Packaged Depth (in): 13.2"
- Packaged Height (in): 4.1"
- Packaged Width (in): 15.2"
- Type (DX Concrete & Masonry): Dust Extractor Attachment
- Shipping Weight: 4.2 lbs.
- UPC Code: 088381-540834
Includes:
- (1) Dust Case with HEPA Filter Cleaning Mechanism (199588-6)
| Brand | Makita |
|---|
